Voice Activation Module

Component ID: 322
Component : MODULE-HANDS FREE

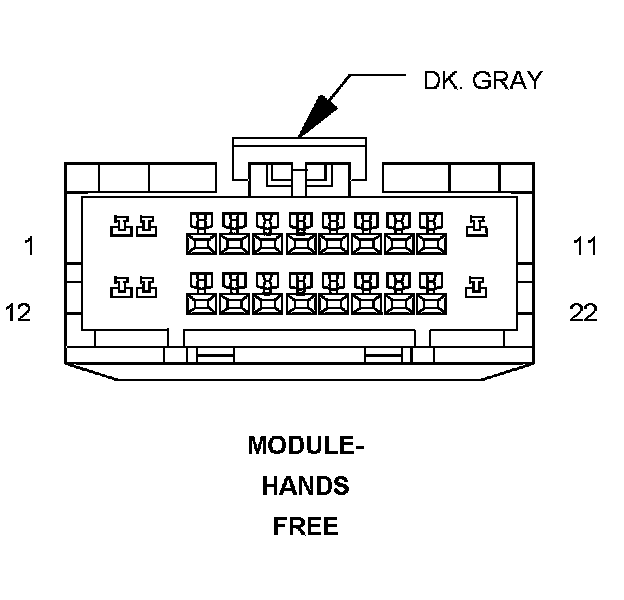

Connector:
Name : MODULE-HANDS FREE
Color : DK. GRAY
# of pins : 22




Pin Circuit Description
1 A417 18RD/DG FUSED B(+) (I.O.D.)
2 - -
3 - -
4 D54 20WT/PK CAN B BUS (-)
5 X722 20LB/DG MICROPHONE 2 IN (+)
6 - -
7 - -
8 X703 22DG/OR LEFT AUDIO OUTPUT
9 X704 22DG/PK RIGHT AUDIO OUTPUT
10 X795 22DG/BK COMMON AUDIO OUTPUT
11 - -
12 - -
13 - -
14 D55 20WT/OR CAN B BUS (+)
15 X730 20GY/YL VOICE RECOGNITION/PHONE SWITCH SIGNAL
16 X712 20DG/LB MICROPHONE 1 IN (+)
17 X792 20LB/TN MICROPHONE IN (-)
18 - -
19 - -
20 X793 20DG/YL MICROPHONE FEED
21 X835 20OR/BK SENSOR GROUND
22 Z937 18BK/YL GROUND

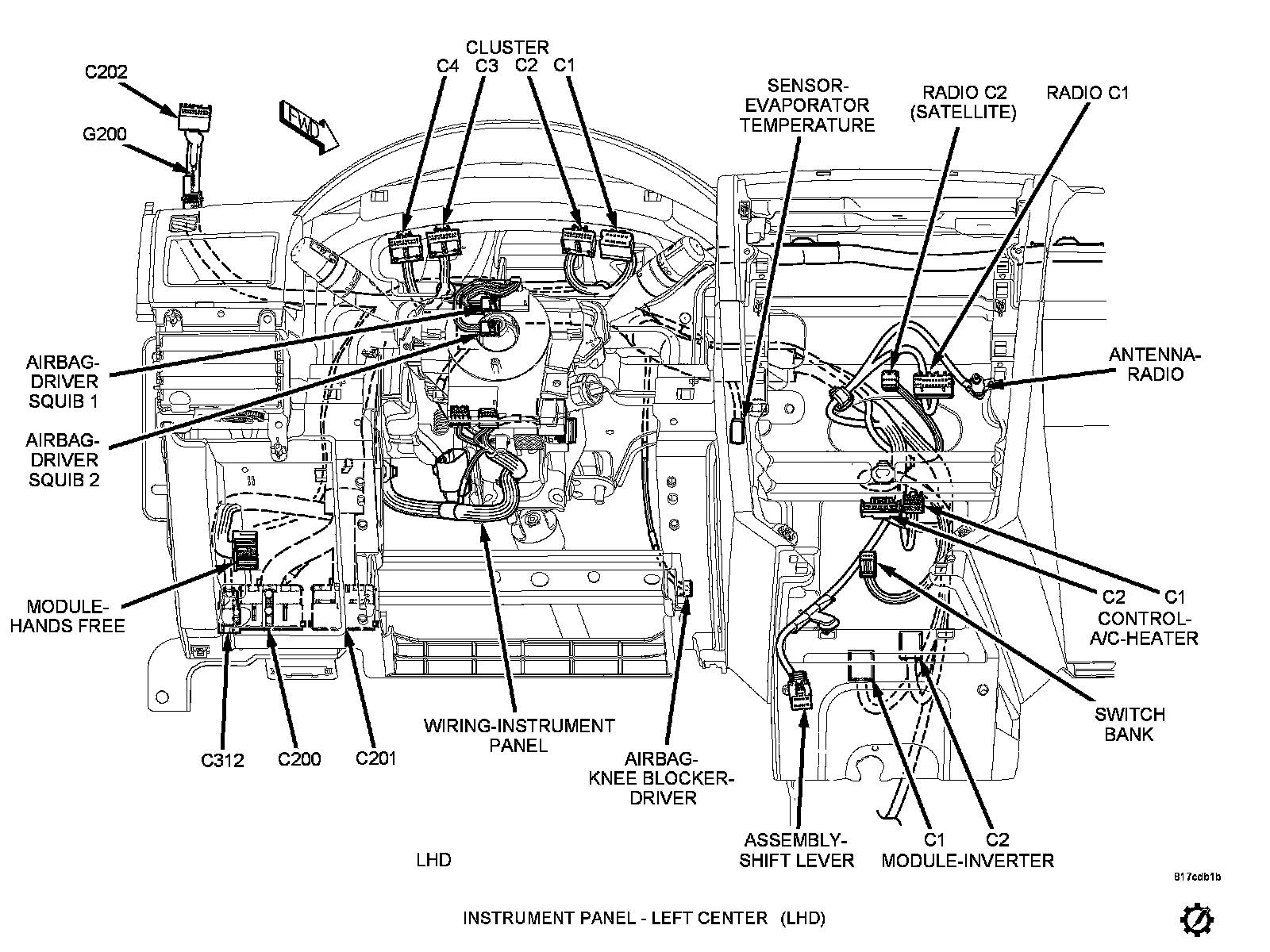

Component Location - 25

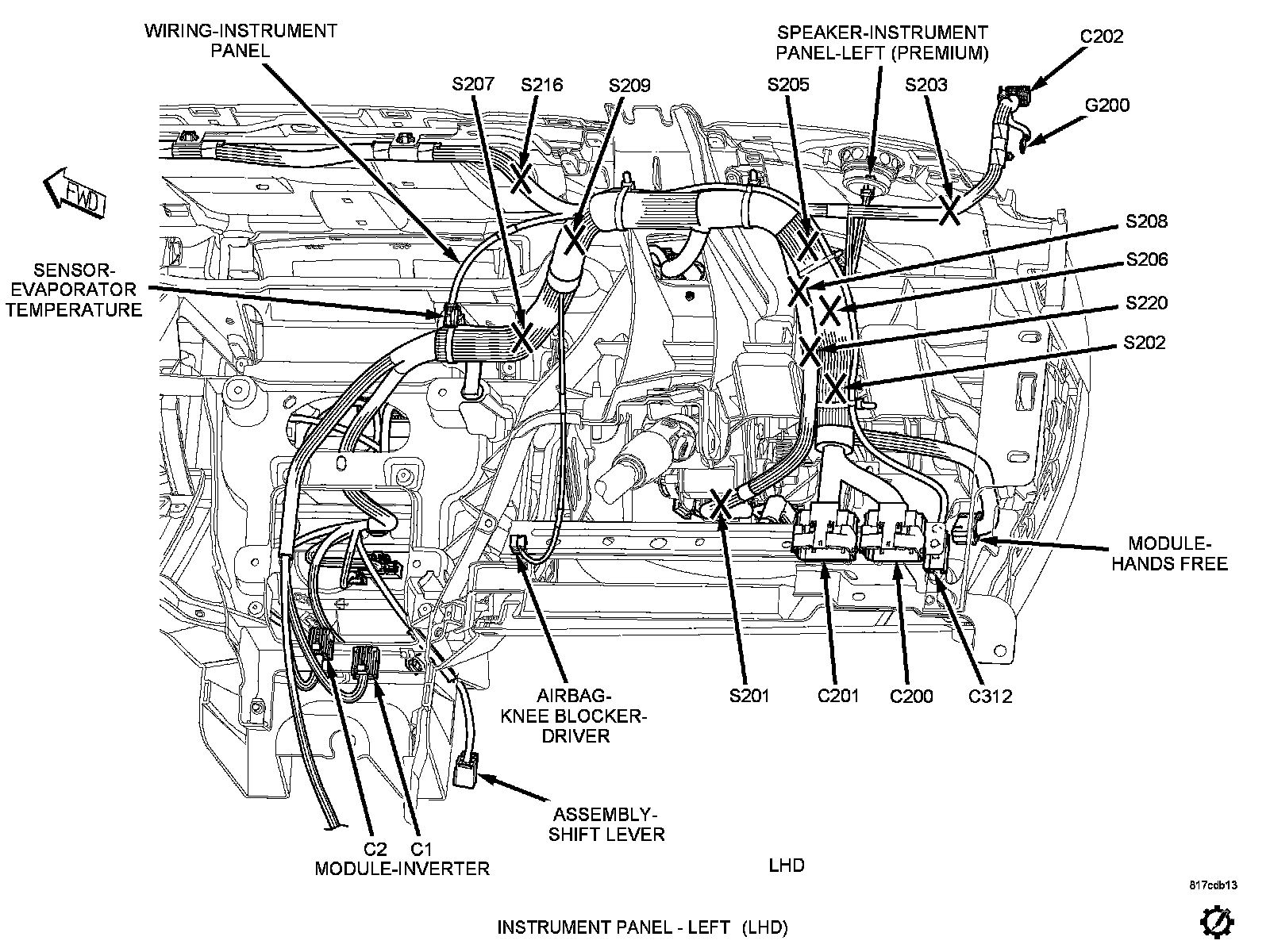

Component Location - 27
