Variable Induction Control Valve

Component ID: 155

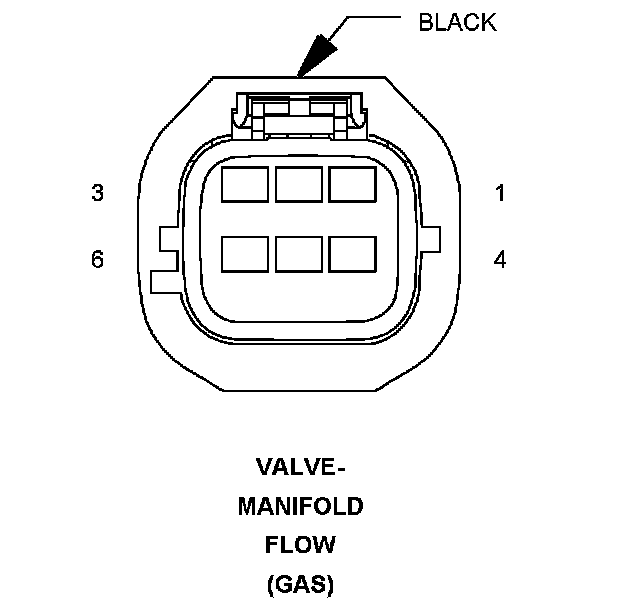

Component : VALVE-MANIFOLD FLOW

Connector:
Name : VALVE-MANIFOLD FLOW
Color : BLACK
# of pins : 6
Qualifier : (GAS)




Pin Circuit Description
1 Z909 16BK/WT GROUND
2 - -
3 K601 20BR/VT MFV CONTROL
4 K900 20DB/DG SENSOR GROUND
5 K602 20YL/DB MFV SIGNAL
6 K857 20BR/LG 5 VOLT SUPPLY

Component Location - 14




Component Location - 15
