Speaker-Subwoofer

Component ID: 279
Component : SPEAKER-SUBWOOFER

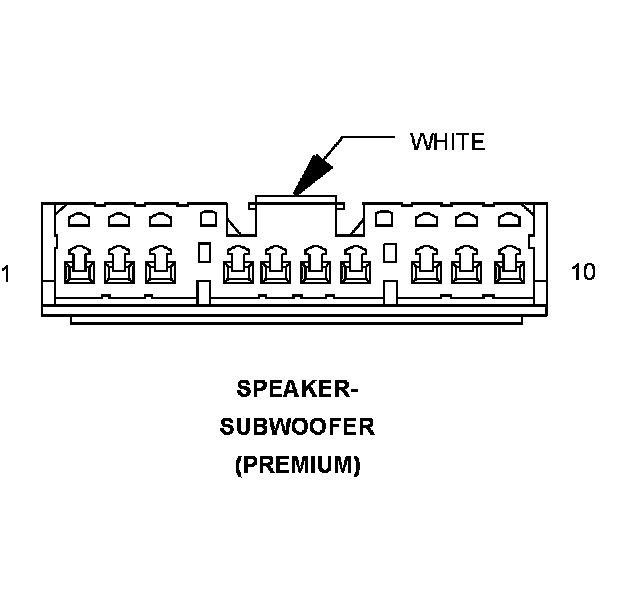

Connector:
Name : SPEAKER-SUBWOOFER
Color : WHITE
# of pins : 10
Qualifier : (PREMIUM)




Pin Circuit Description
1 X60 20GY/RD POWER ANTENNA SIGNAL
2 Z960 16BK/LB GROUND
3 - -
4 - -
5 A419 18RD/DG FUSED B(+) (I.O.D.)
6 - -
7 X205 18GY/LG AMPLIFIED LEFT REAR SPEAKER (+)
8 X295 18GY/DG AMPLIFIED LEFT REAR SPEAKER (-)
9 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
10 X296 18DG/LB AMPLIFIED RIGHT REAR SPEAKER (-)
10 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)

Component Location - 59
