Speaker-Right Rear

Component ID: 289
Component : SPEAKER-RIGHT REAR

Connector:

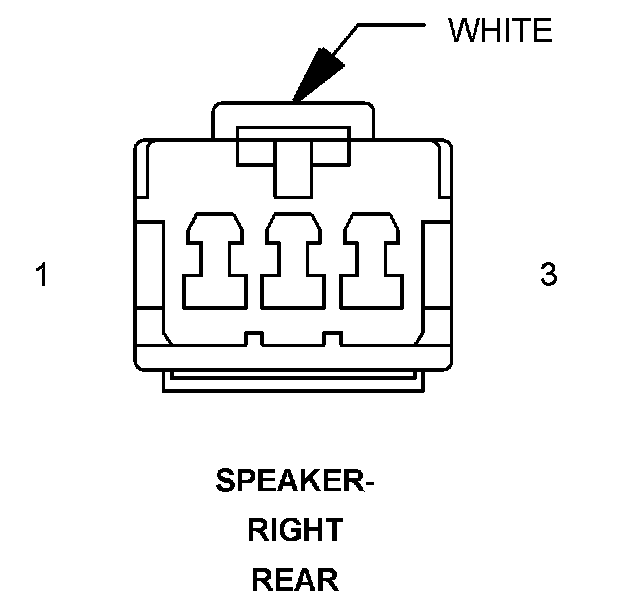

Name : SPEAKER-RIGHT REAR
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X52 18GY/DB RIGHT REAR SPEAKER (+)
Pin Circuit Description
1 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
2 - -
3 X58 18GY/OR RIGHT REAR SPEAKER (-)
3 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)

Component Location - 51




Component Location - 52
