Speaker-Right Front Door

Component ID: 287
Component : SPEAKER-RIGHT FRONT DOOR

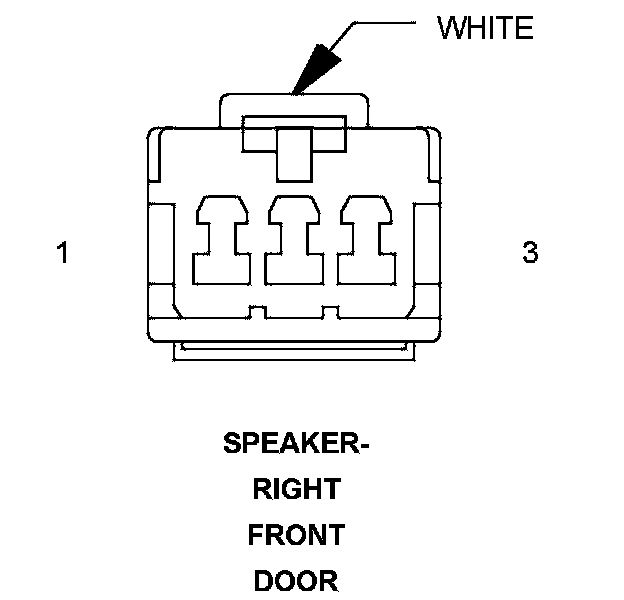

Connector:
Name : SPEAKER-RIGHT FRONT DOOR
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
Pin Circuit Description
1 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
2 - -
3 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
3 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)

Component Location - 49
