Speaker-Liftgate

Component ID: 283

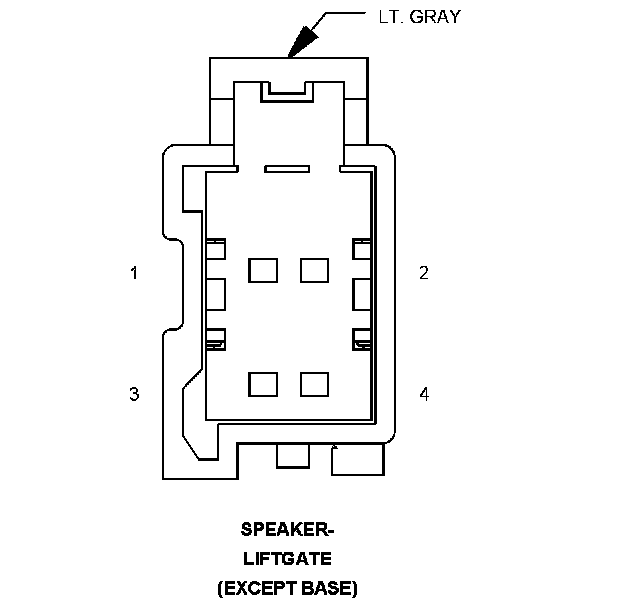

Component : SPEAKER-LIFTGATE

Connector:
Name : SPEAKER-LIFTGATE
Color : LT. GRAY
# of pins : 4
Qualifier : (EXCEPT BASE)




Pin Circuit Description
1 X214 18DG/DB AMPLIFIED LIFTGATE SPEAKER 1 (+)
2 X284 18DG/TN AMPLIFIED LIFTGATE SPEAKER 1 (-)
3 X212 18GY/DB AMPLIFIED LIFTGATE SPEAKER 2 (+)
4 X282 18GY/TN AMPLIFIED LIFTGATE SPEAKER 2 (-)

Component Location - 64
