Speaker-Instrument Panel-Right

Component ID: 284

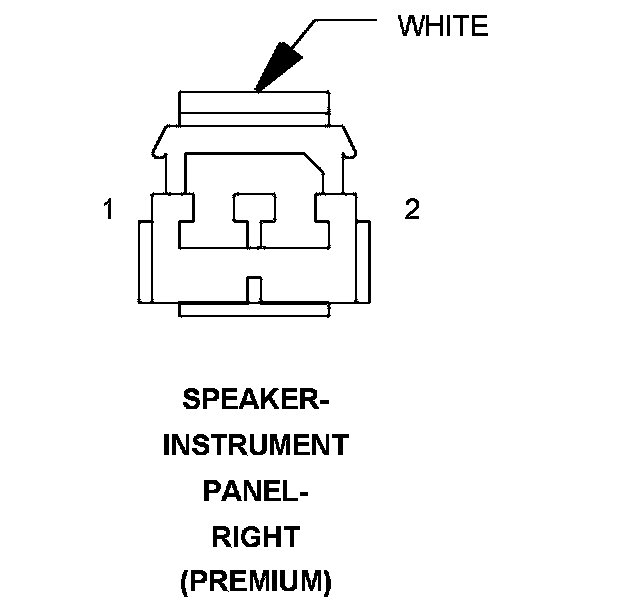

Component : SPEAKER-INSTRUMENT PANEL-RIGHT

Connector:
Name : SPEAKER-INSTRUMENT PANEL-RIGHT
Color : WHITE
# of pins : 2
Qualifier : (PREMIUM)




Pin Circuit Description
1 X208 18GY/DG RIGHT INSTRUMENT PANEL SPEAKER (+)
2 X298 18GY/LG RIGHT INSTRUMENT PANEL SPEAKER (-)

Component Location - 26




Component Location - 30




Component Location - 32
