Speaker-Instrument Panel-Left

Component ID: 285

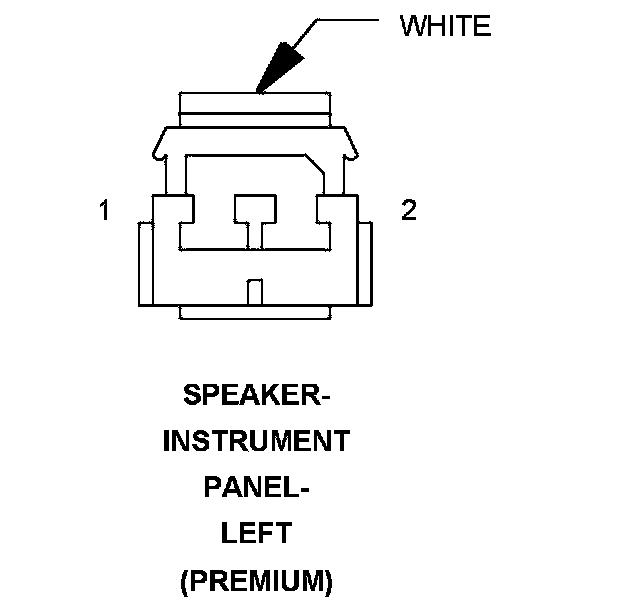

Component : SPEAKER-INSTRUMENT PANEL-LEFT

Connector:
Name : SPEAKER-INSTRUMENT PANEL-LEFT
Color : WHITE
# of pins : 2
Qualifier : (PREMIUM)




Pin Circuit Description
1 X209 18GY/TN LEFT INSTRUMENT PANEL SPEAKER (+)
2 X299 18GY/BR LEFT INSTRUMENT PANEL SPEAKER (-)

Component Location - 25




Component Location - 31
