Shifter CVT

Component ID: 209
Component : ASSEMBLY-SHIFT LEVER

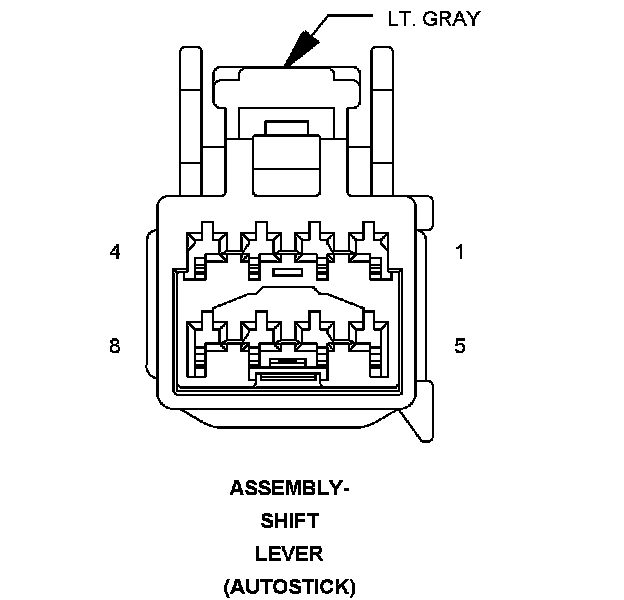

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 8
Qualifier : (AUTOSTICK)




Pin Circuit Description
1 T5 20DG/LG AUTOSTICK UPSHIFT SIGNAL
2 - -
3 Z937 20BK/YL GROUND
3 Z941 20BK/WT GROUND
4 E12 20OR/GY PANEL LAMPS DRIVER
5 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
6 Z937 20BK/YL GROUND
6 Z941 20BK/WT GROUND
7 Z937 20BK/YL GROUND
7 Z941 20BK/WT GROUND
8 K321 20BR/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK

Component Location - 27




Component Location - 32

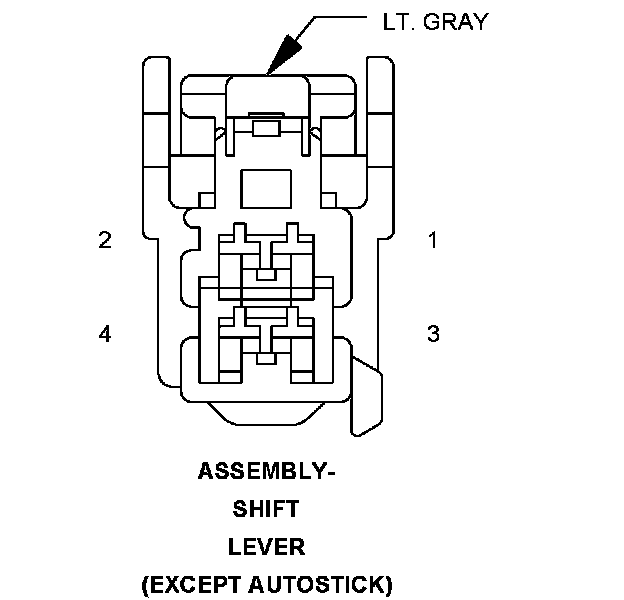

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 4
Qualifier : (EXCEPT AUTOSTICK)




Pin Circuit Description
1 Z937 20BK/YL GROUND
2 E12 20OR/GY PANEL LAMPS DRIVER
3 Z937 20BK/YL GROUND
4 K321 20BR/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK

Component Location - 27




Component Location - 32
