Seat Temperature Control Module

Component ID: 345
Component : MODULE-HEATED SEATS

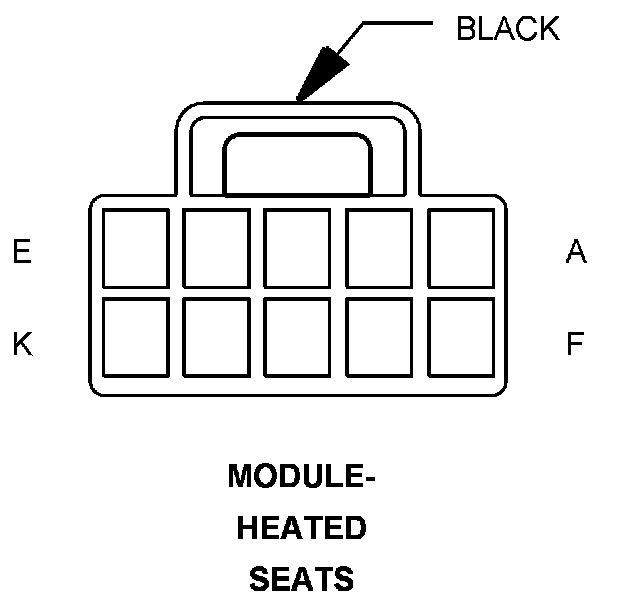

Connector:
Name : MODULE-HEATED SEATS
Color : BLACK
# of pins : 10




A - -
B - -
C - -
D P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
E F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
F Z960 18BK GROUND
G - -
H - -
J D506 20WT/DG LIN BUS
K P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER

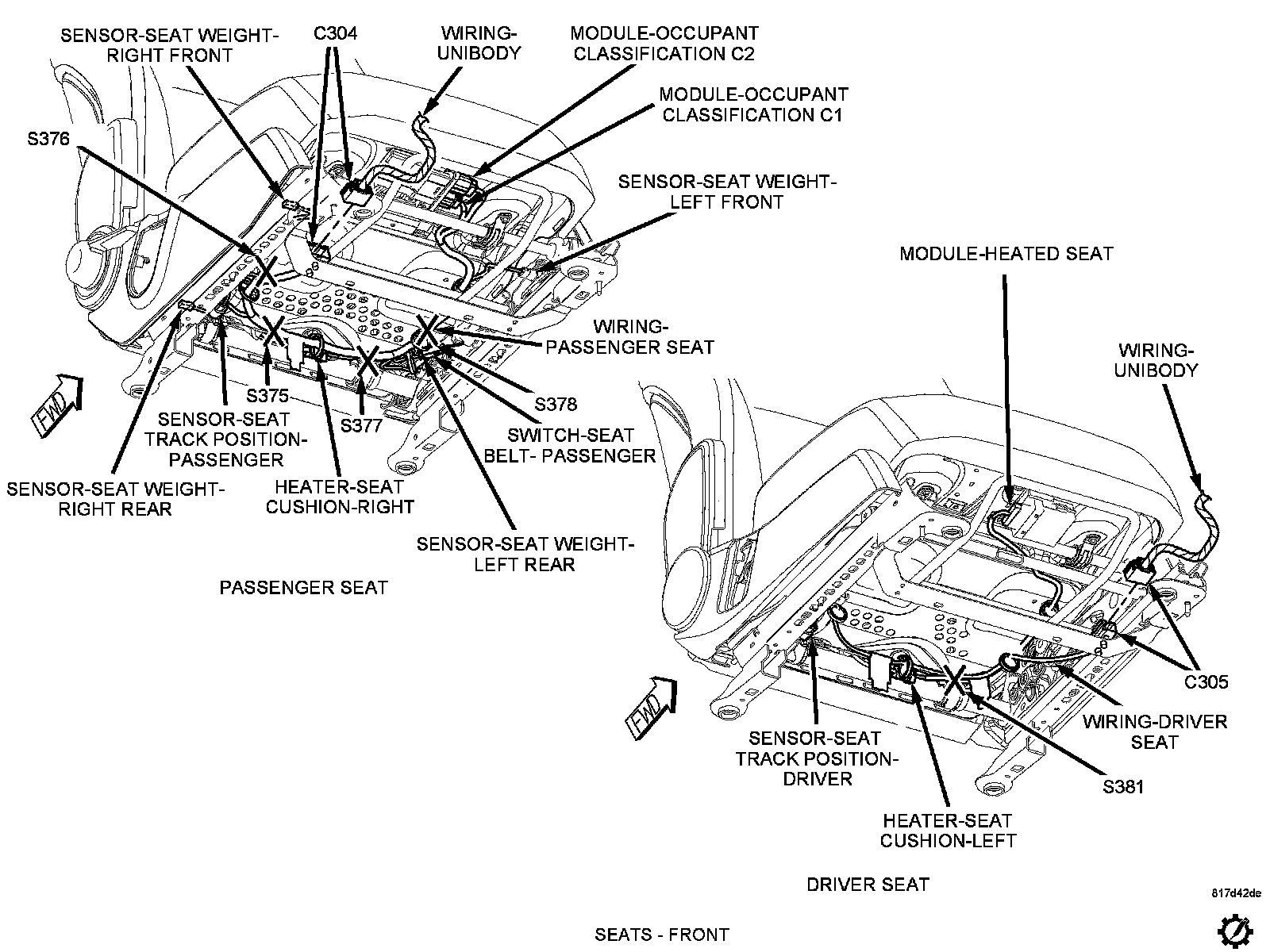

Component Location - 53
