Radio

Component ID: 277
Component : RADIO

Connector:

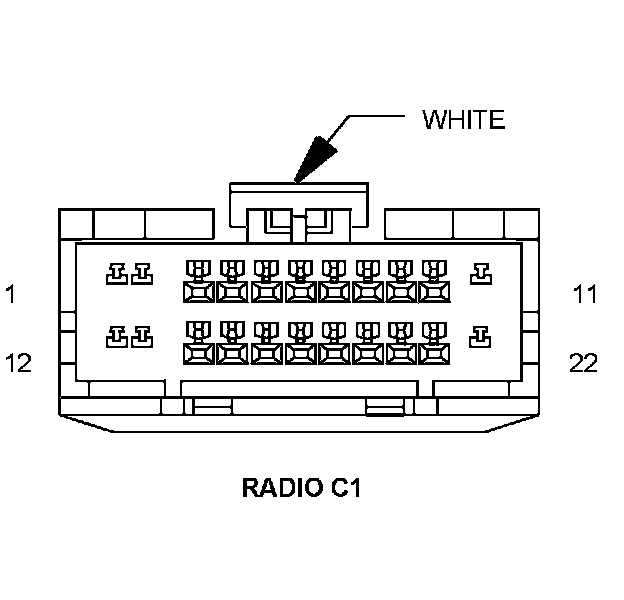

Name : RADIO C1
Color : WHITE
# of pins : 22




Pin Circuit Description
1 A413 18RD/LB FUSED B(+) (I.O.D.)
2 - -
3 - -
4 X703 22DG/OR LEFT AUDIO OUTPUT
5 D55 20WT/OR CAN B BUS (+)
6 D54 20WT/PK CAN B BUS (-)
7 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
8 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
9 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
10 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
11 Z937 16BK/YL GROUND
12 A413 18RD/LB FUSED B(+) (I.O.D.)
13 X60 20GY/RD POWER ANTENNA SIGNAL
14 - -
15 - -
16 X704 22DG/PK RIGHT AUDIO OUTPUT
17 X795 22DG/BK COMMON AUDIO OUTPUT
18 X51 18DG/DB LEFT REAR SPEAKER (+)
19 X57 18DG/BR LEFT REAR SPEAKER (-)
20 X58 18GY/OR RIGHT REAR SPEAKER (-)
21 X52 18GY/DB RIGHT REAR SPEAKER (+)
22 Z937 16BK/YL GROUND

Component Location - 27




Component Location - 32






Connector:
Name : RADIO C2
Color : BLACK
# of pins : 10
Qualifier : (SATELLITE RADIO)




Pin Circuit Description
1 X16 20DG/YL AUDIO SIGNAL RIGHT (+)
2 X917 20DG AUDIO SIGNAL COMMON
3 - -
4 - -
5 - -
6 X17 20DG/OR AUDIO SIGNAL LEFT (+)
7 - -
8 - -
9 - -
10 - -

Component Location - 27




Component Location - 32
