Switch-Power Window-Driver

Component ID: 324
Component : SWITCH-POWER WINDOW-DRIVER

Connector:

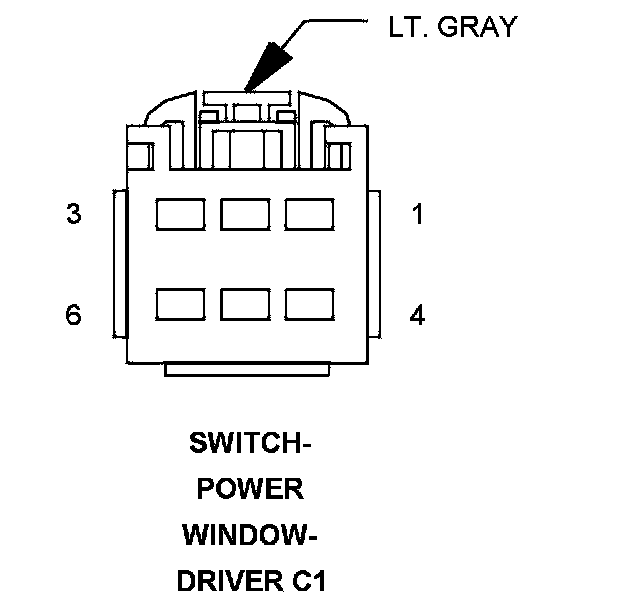

Name : SWITCH-POWER WINDOW-DRIVER C1
Color : LT. GRAY
# of pins : 6




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
3 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
4 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
5 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
5 Q22 14OR/VT RIGHT FRONT WINDOW DRIVER (DOWN)
6 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
6 Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)

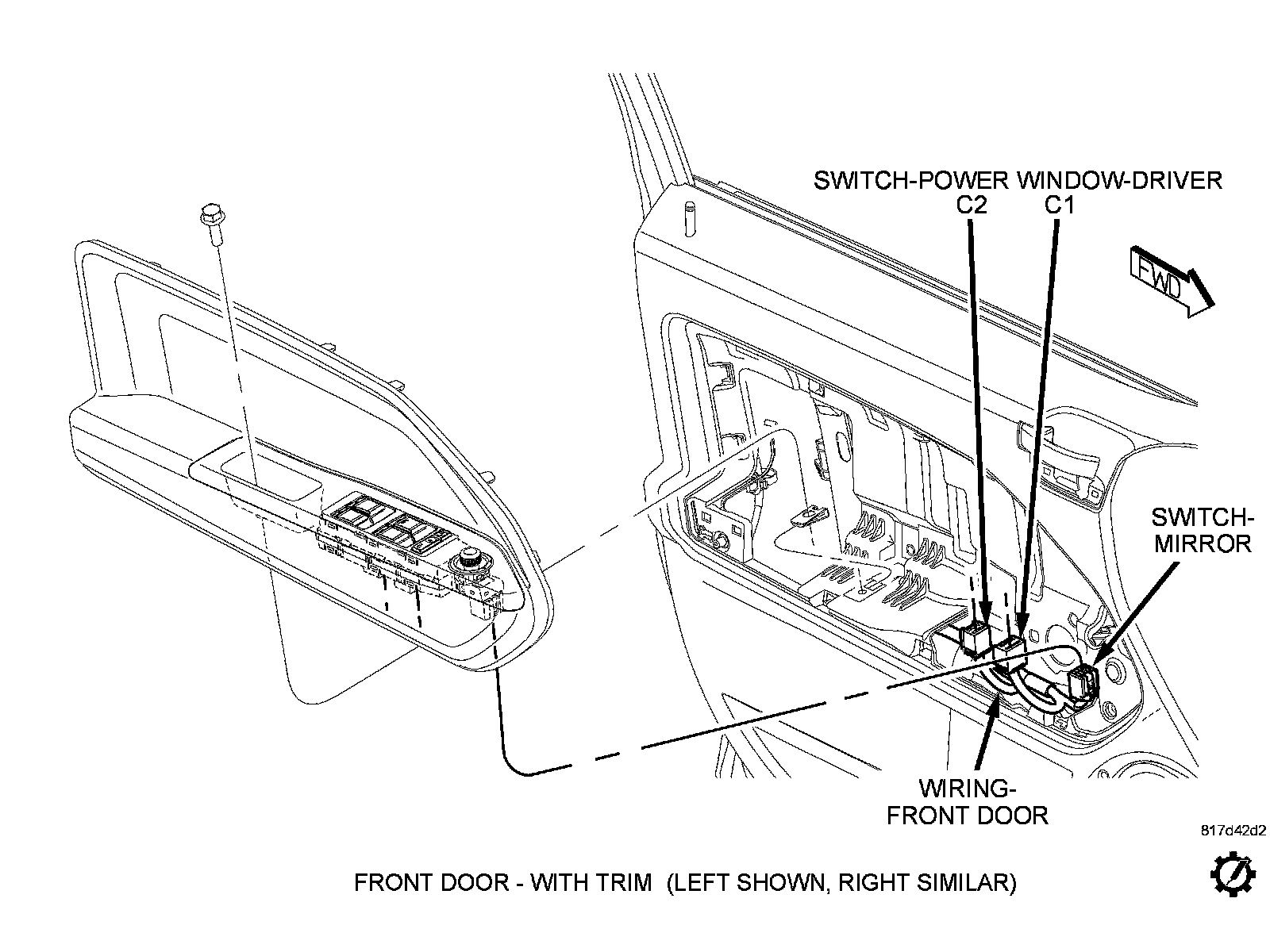

Component Location - 50






Connector:

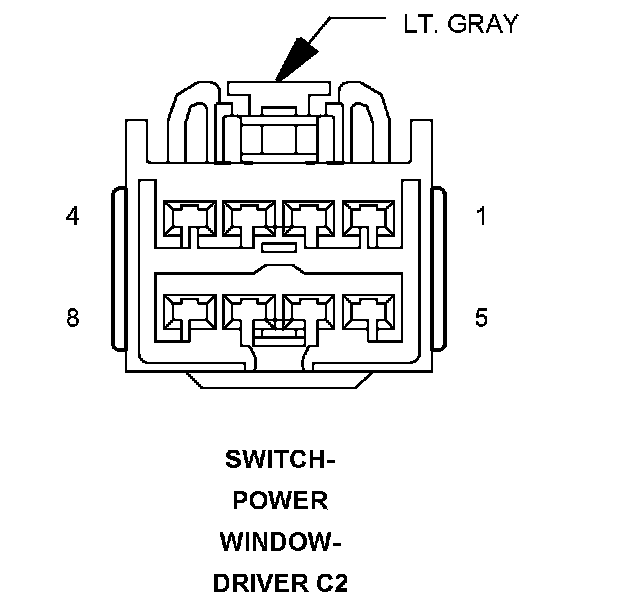

Name : SWITCH-POWER WINDOW-DRIVER C2
Color : LT. GRAY
# of pins : 8




Pin Circuit Description
1 - -
2 F981 14PK/BR IGNITION SWITCH OUTPUT (RUN-ACC)
3 Z961 20BK/YL GROUND
3 Z929 20BK/PK GROUND
4 Z928 14BK/LG GROUND
5 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
6 Q21 14OR/WT LEFT FRONT WINDOW DRIVER (DOWN)
6 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
7 Q11 14OR/LG LEFT FRONT WINDOW DRIVER (UP)
7 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
8 P697 20LG/DG DOOR LOCK SWITCH MUX

Component Location - 50
