Navigation Module

Component ID: 323
Component : MODULE-TRAFFIC INFORMATION RECEIVER

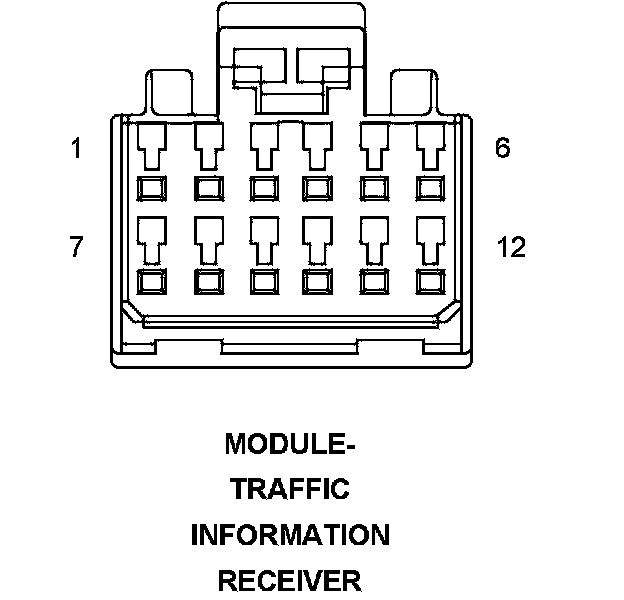

Connector:
Name : MODULE-TRAFFIC INFORMATION RECEIVER
Color :
# of pins : 12




Pin Circuit Description
1 A413 20RD/LB FUSED B(+) (I.O.D.)
2 - -
3 - -
4 - -
5 D55 20WT/OR CAN B BUS (+)
6 -
7 - -
8 - -
9 - -
10 - -
11 D54 20WT/PK CAN B BUS (-)
12 Z909 20BK GROUND

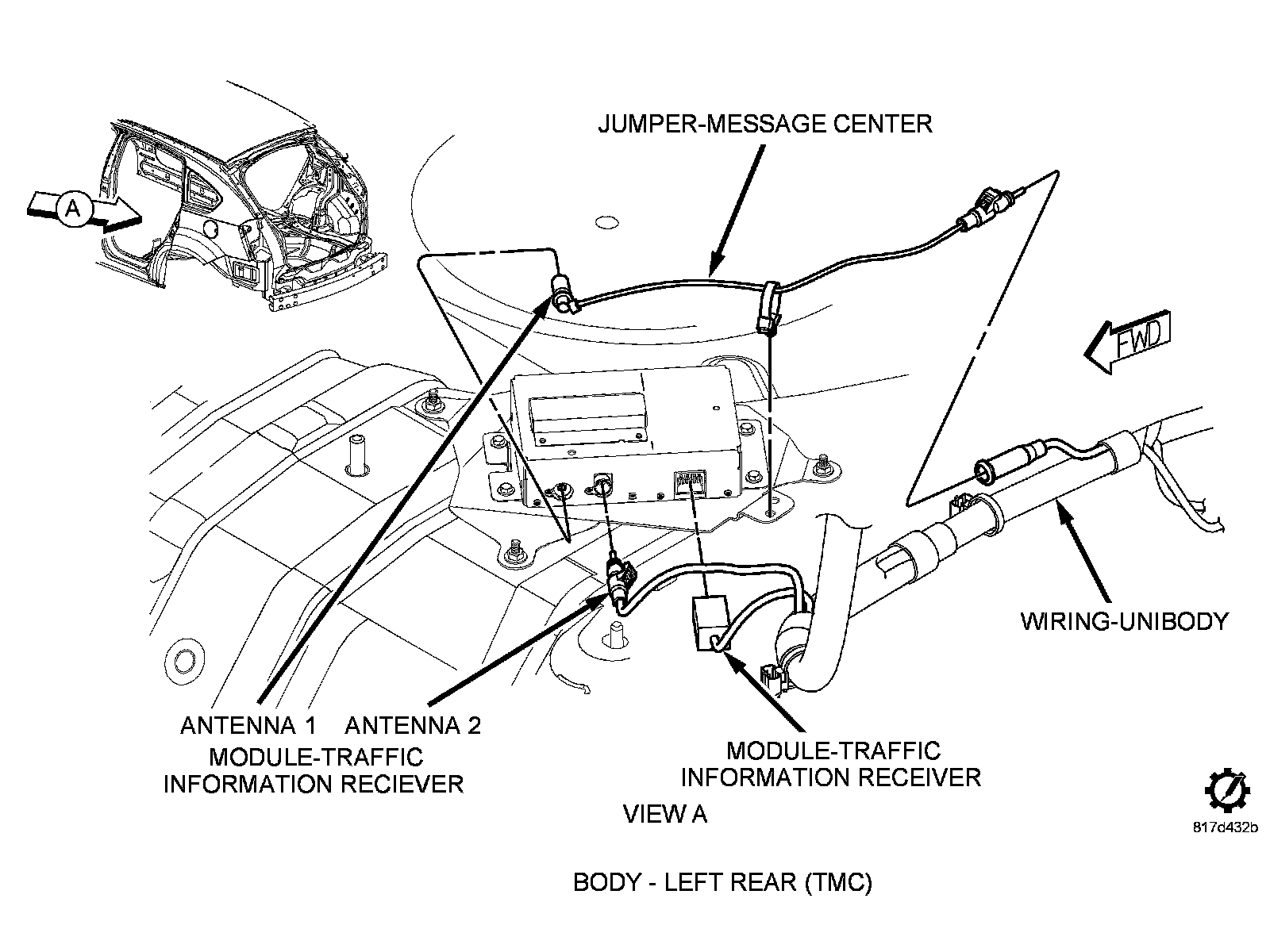

Component Location - 63
