Electronic Brake Control Module

Component ID: 212
Component : MODULE-ANTI-LOCK BRAKES

Connector:
Name : MODULE-ANTI-LOCK BRAKES
Color : BLACK
# of pins : 47
Gender : FEMALE




Pin Circuit Description
1 A921 12RD/DB FUSED B(+) (PUMP)
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
9 - -
10 - -
11 - -
12 D65 20WT/BK CAN C BUS (+)
13 D64 20WT/LB CAN C BUS (-)
14 - -
15 - -
16 Z909 12BK/WT GROUND
17 - -
18 D465 20WT/DB DYNAMICS SENSOR HIGH DATA LINK
19 D464 20WT/YL DYNAMICS SENSOR LOW DATA LINK
20 - -
21 - -
22 G4 20VT/LB DYNAMICS SENSOR SUPPLY
22 G4 18VT/LB DYNAMICS SENSOR SUPPLY
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 G94 20VT/DB DYNAMICS SENSOR GROUND
29 G94 18VT/DB DYNAMICS SENSOR GROUND
30 - -
31 - -
32 A922 14RD/BK FUSED B(+) (VALVE)
33 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
34 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
35 - -
36 B4 20LG/BK LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
37 B3 20LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
38 - -
39 - -
40 - -
41 - -
42 B1 20YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
43 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
44 - -
45 B9 20DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
46 B8 20DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
47 Z909 12BK/WT GROUND

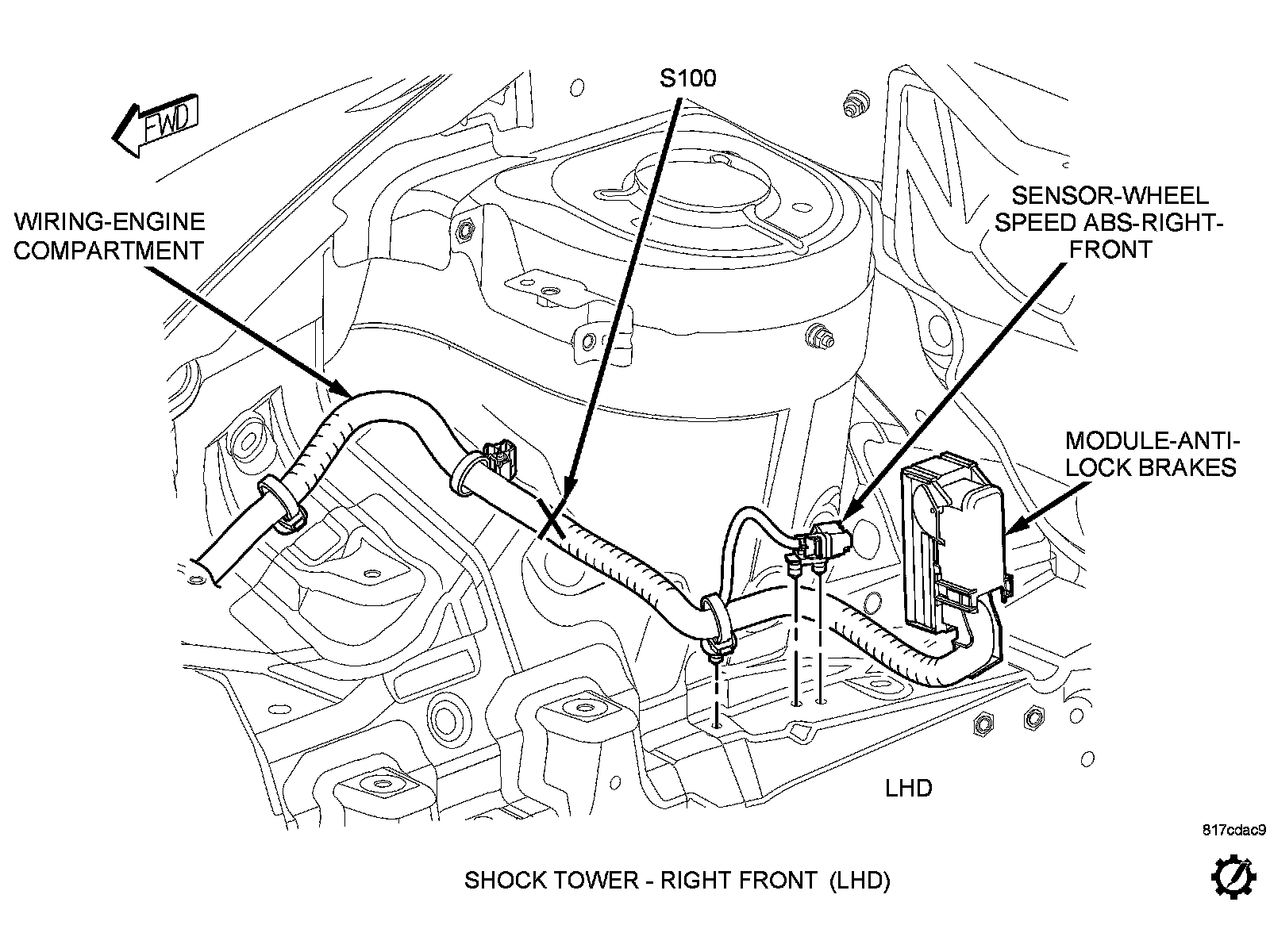

Component Location - 5




Component Location - 8
