Sensor-Engine Coolant Temperature 2

Component ID: 159
Component : SENSOR-ENGINE COOLANT TEMPERATURE 2

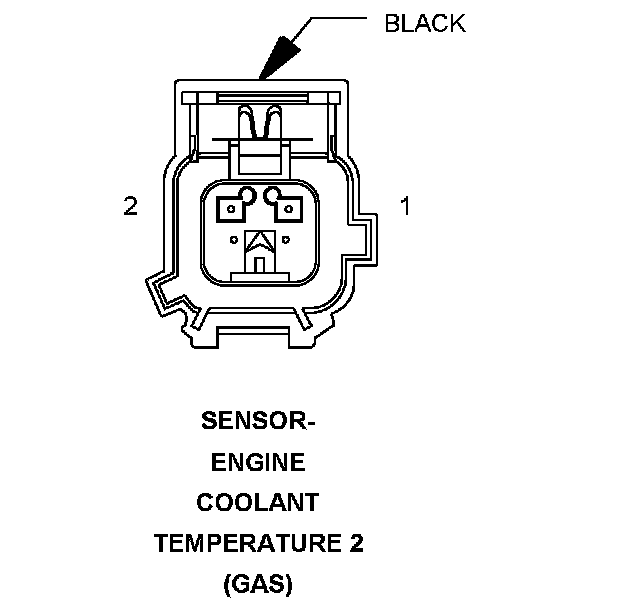

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K915 20BR/WT SENSOR GROUND
2 K222 20BR/YL ECT 2 SIGNAL

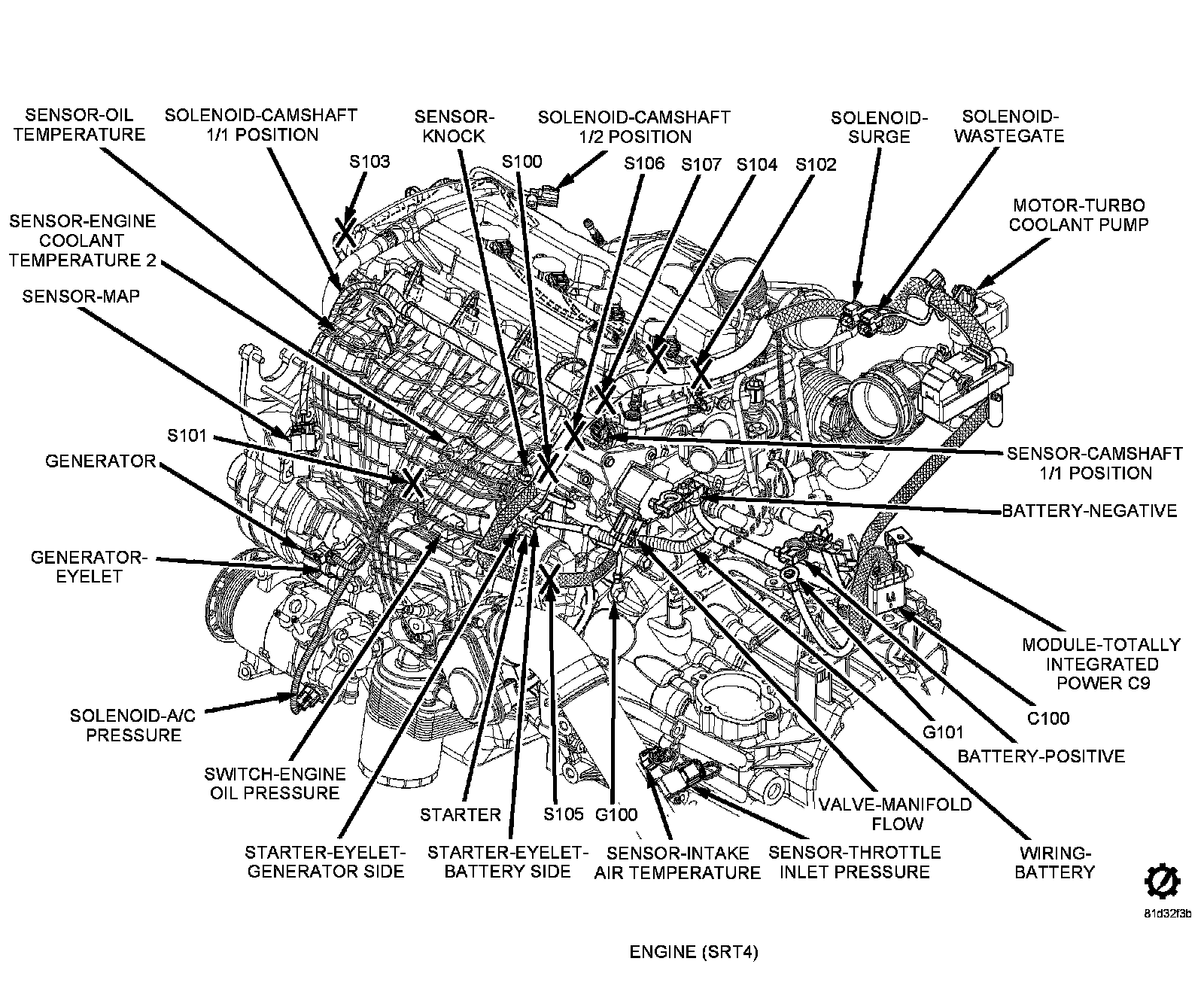

Component Location - 14




Component Location - 16




Component Location - 15
