Control Module, CVT

Component ID: 203
Component : MODULE-TRANSMISSION CONTROL

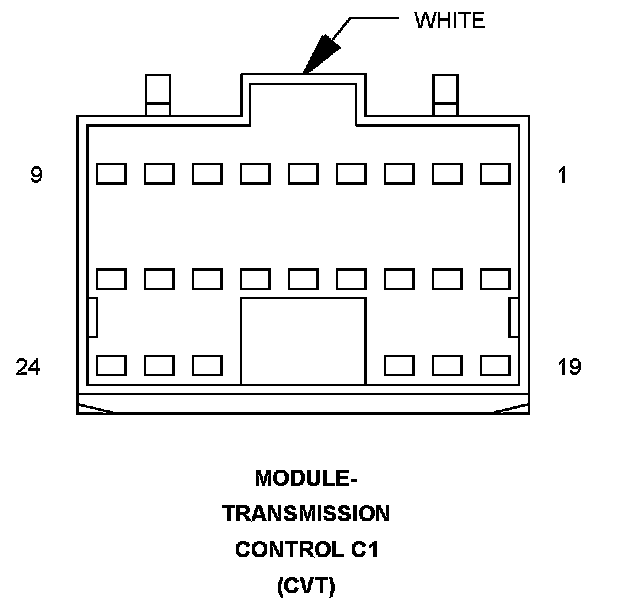

Connector:
Name : MODULE-TRANSMISSION CONTROL C1
Color : WHITE
# of pins : 24
Qualifier : (CVT)




Pin Circuit Description
1 T20 18DG/LB LINE PRESSURE CONTROL
2 T19 18YL/DB SECONDARY PRESSURE CONTROL
3 T59 18YL/LB TCC CONTROL
4 T60 18YL/GY TCC ON/OFF CONTROL
5 D65 20WT/BK CAN C BUS (+)
6 D64 20WT/LB CAN C BUS (-)
7 - -
8 - -
9 - -
10 T16 18YL/OR TRANSMISSION CONTROL OUTPUT
11 T314 18LB/YL STEP MOTOR CONTROL A
12 T315 18YL/OR STEP MOTOR CONTROL B
13 T302 18DG/BR CLOCK SELECT
14 T313 18YL/LG CHIP SELECT
15 T327 18GY/YL DATA IN/OUT SELECT
16 - -
17 - -
18 T41 20YL/BK TRS T41 SIGNAL
19 T16 18YL/OR TRANSMISSION CONTROL OUTPUT
20 T316 18YL/WT STEP MOTOR CONTROL C
21 T317 18TN/YL STEP MOTOR CONTROL D
22 T42 20DG/PK TRS T42 SIGNAL
23 - -
24 - -

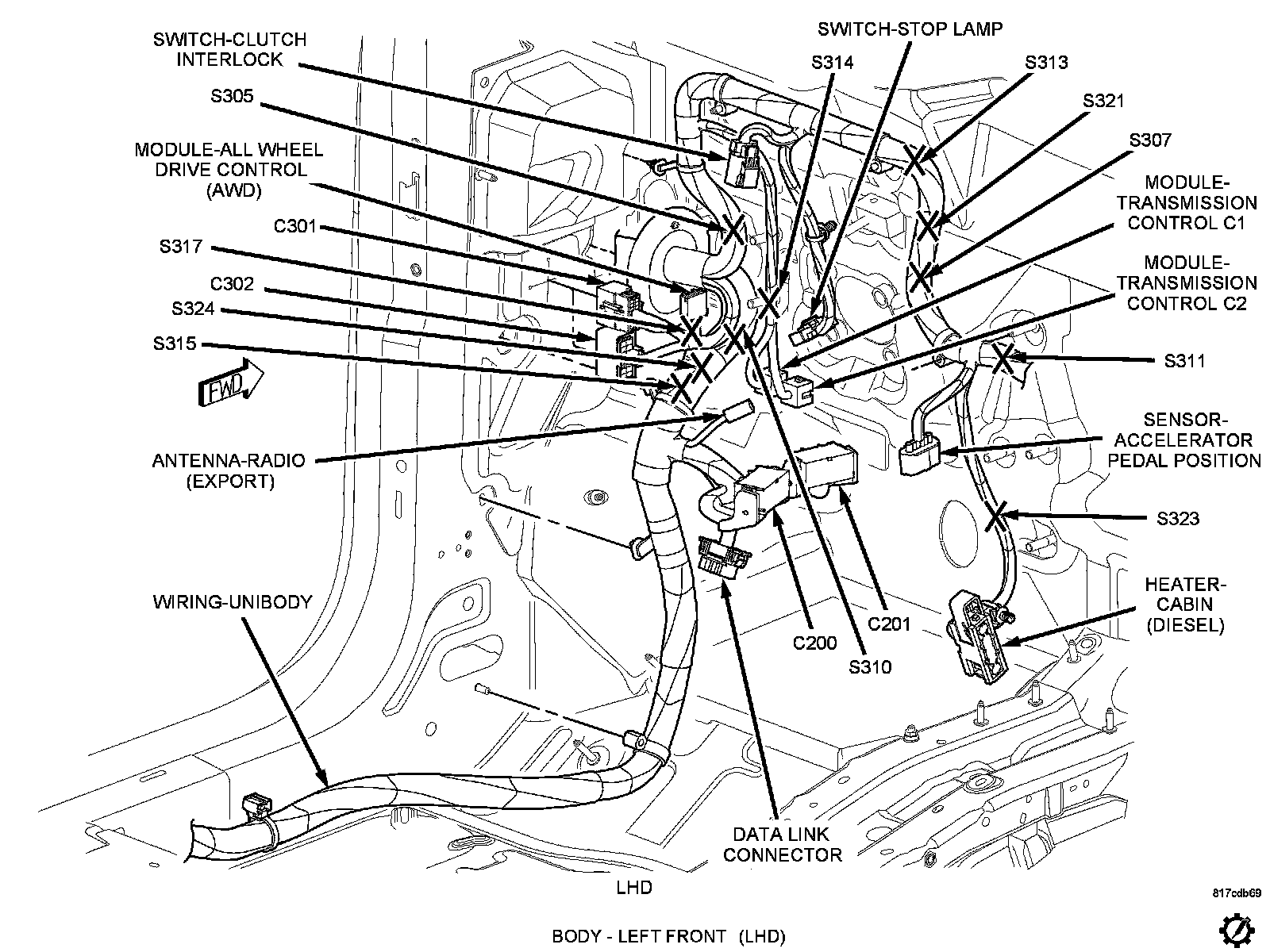

Component Location - 40

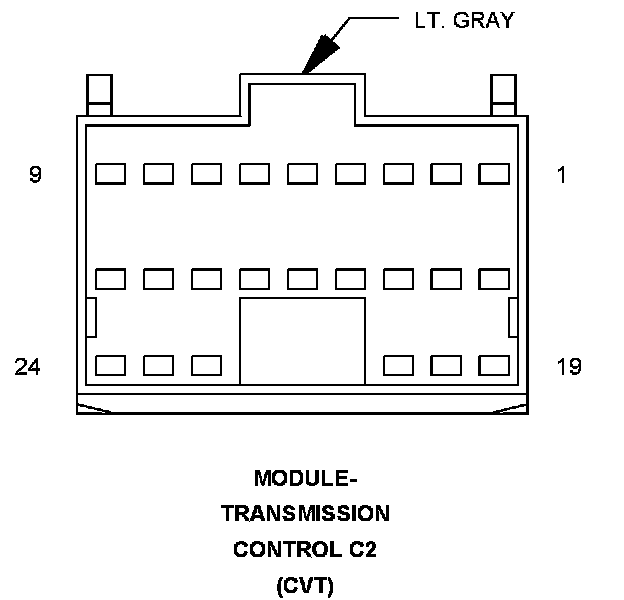

Connector:
Name : MODULE-TRANSMISSION CONTROL C2
Color : LT. GRAY
# of pins : 24
Qualifier : (CVT)




Pin Circuit Description
1 Z967 18BK GROUND
2 T4 20DG/LB TRS T4 SIGNAL
3 - -
4 A952 20RD/OR FUSED B(+)
5 T52 18DG/WT OUTPUT SPEED SIGNAL
6 - -
7 - -
8 - -
9 - -
10 T5 20DG/LG AUTOSTICK UPSHIFT SIGNAL
11 - -
12 T44 20YL/LG AUTOSTICK DOWNSHIFT SIGNAL
12 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
13 T50 18PK/LB SECONDARY PRESSURE SIGNAL
14 T14 18DG/BK INPUT SPEED SIGNAL
15 - -
16 - -
17 T21 18DG/YL PRIMARY PRESSURE SIGNAL
18 T13 18DG/TN SENSOR GROUND
19 T3 20DG/DB TRS T3 SIGNAL
20 T1 20DG/GY TRS T1 SIGNAL
21 T130 18TN/DG OUTPUT SPEED SENSOR GROUND
22 T72 18PK 5 VOLT SUPPLY
22 T72 18PK/LB 5 VOLT SUPPLY
23 T54 18RD/WT TRANSMISSION TEMPERATURE SIGNAL
24 Z967 18BK GROUND

Component Location - 40
