Compass

Component ID: 227

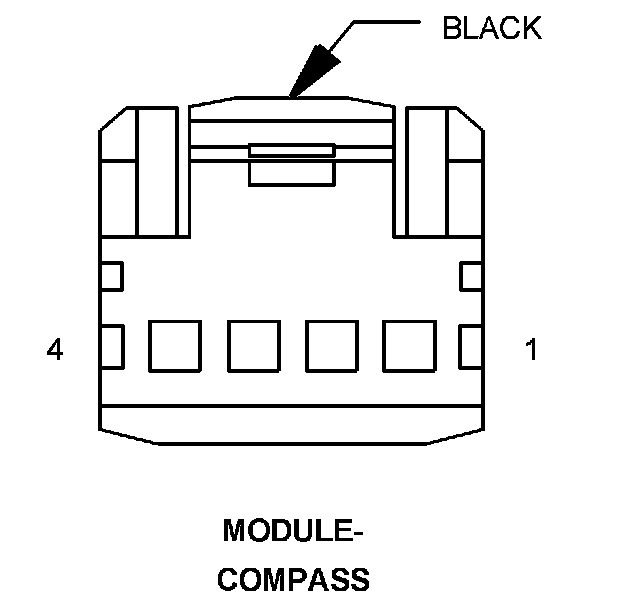

Component : MODULE-COMPASS

Connector:
Name : MODULE-COMPASS
Color : BLACK
# of pins : 4




Pin Circuit Description
1 - -
2 D506 20WT/DG LIN BUS
3 Z937 20BK/YL GROUND
4 F929 20PK/RD FUSED IGNITION SWITCH OUTPUT (RUN)

Component Location - 32
