C353

Component ID: 403
Component : C353

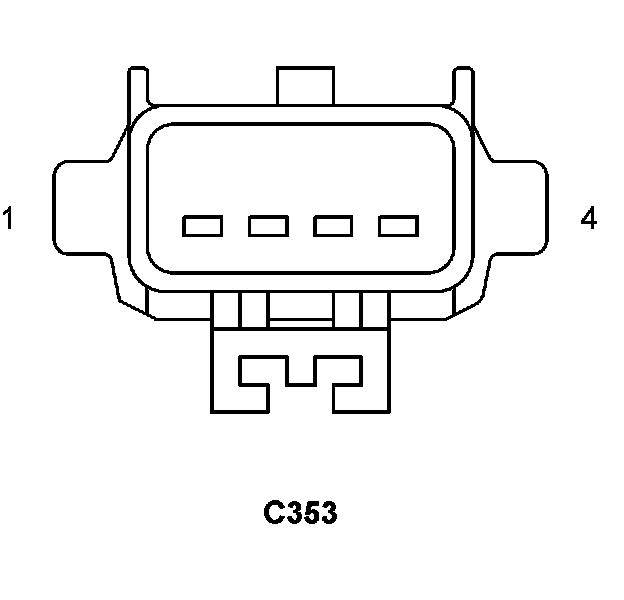

Connector:
Name : C353
Color :
# of pins : 4




Pin Circuit Description
1 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
2 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
3 - -
4 - -

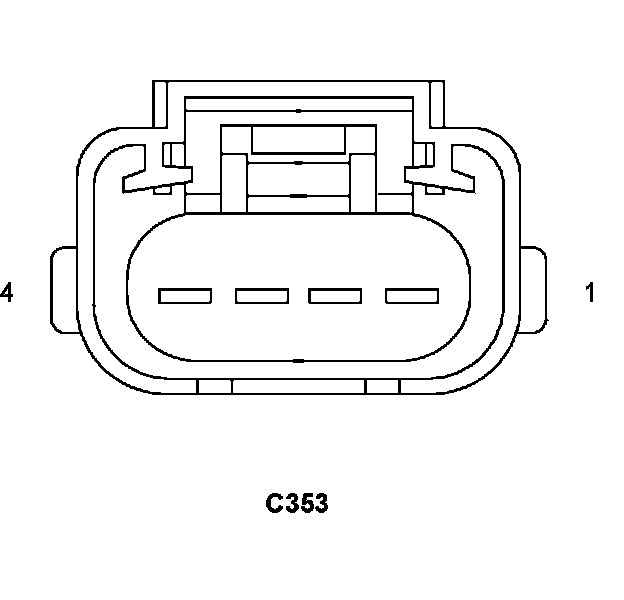

Connector:
Name : C353
Color :
# of pins : 4




Pin Circuit Description
1 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
2 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
3 - -
4 - -
