C352

Component ID: 402
Component : C352

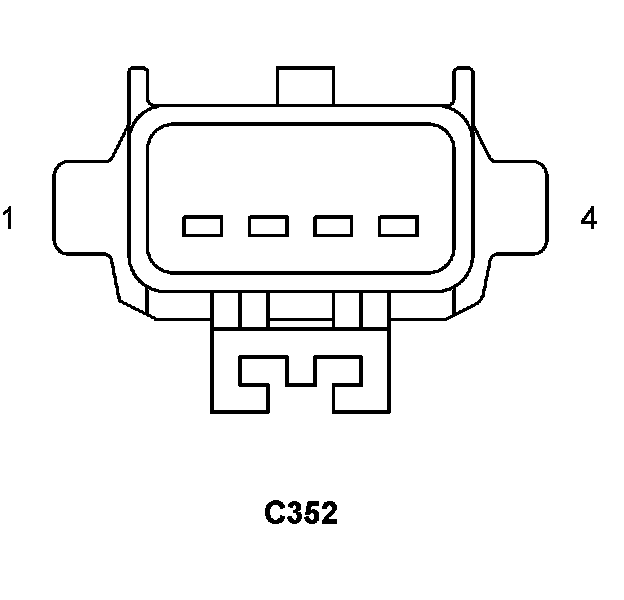

Connector:
Name : C352
Color :
# of pins : 4




Pin Circuit Description
1 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
2 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
3 - -
4 - -

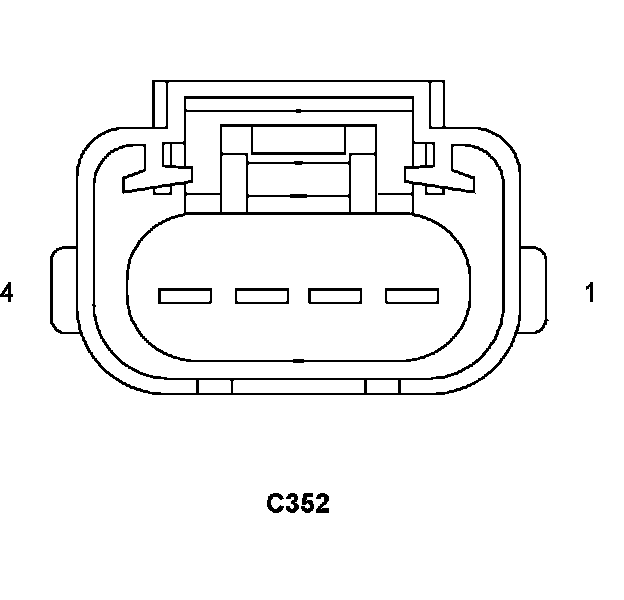

Connector:
Name : C352
Color :
# of pins : 4




Pin Circuit Description
1 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
2 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
3 - -
4 - -
