C313

Component ID: 393
Component : C313

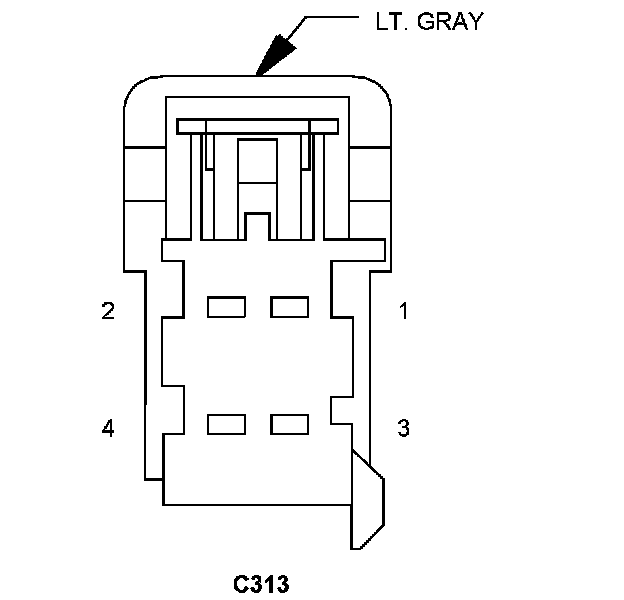

Connector:
Name : C313
Color : LT. GRAY
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 A417 20RD/DG FUSED B(+) (I.O.D.)
2 Z961 18BK/YL GROUND
3 D54 20WT/PK CAN B BUS (-)
4 D55 20WT/OR CAN B BUS (+)

Component Location - 56




Component Location - 58




Component Location - 60

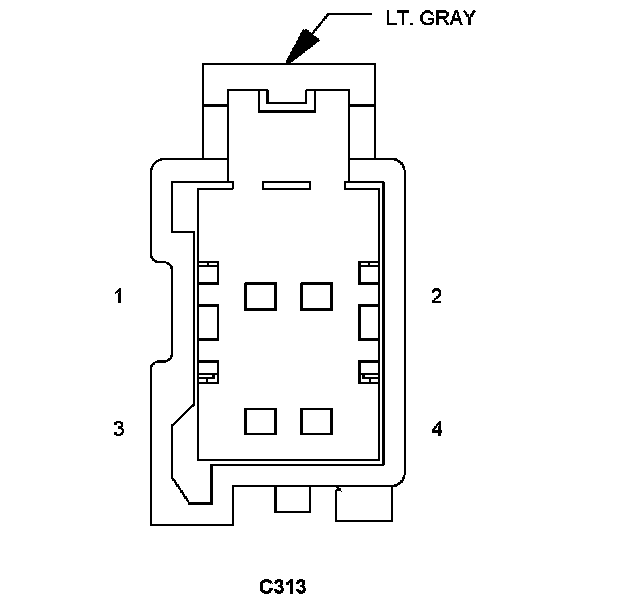

Connector:
Name : C313
Color : LT. GRAY
# of pins : 4
Gender : MALE




Pin Circuit Description
1 A417 18RD FUSED B(+) (I.O.D.)
2 Z965 18BK GROUND
3 D54 20WT CAN B BUS (-)
4 D55 20WT/OR CAN B BUS (+)

Component Location - 56




Component Location - 58




Component Location - 60
