C312

Component ID: 404
Component : C312

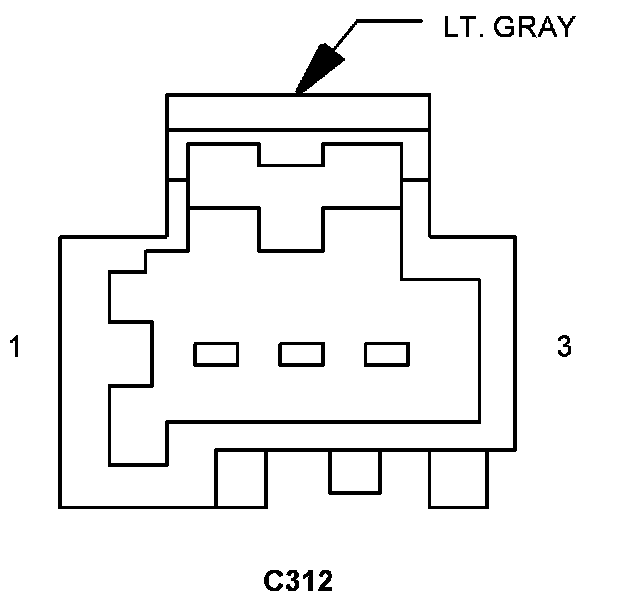

Connector:
Name : C312
Color : LT. GRAY
# of pins : 3
Gender : FEMALE




Pin Circuit Description
1 X16 20DG/YL AUDIO SIGNAL RIGHT (+)
2 X17 20DG/OR AUDIO SIGNAL LEFT (+)
3 X917 20DG AUDIO SIGNAL COMMON

Component Location - 25




Component Location - 27




Component Location - 57

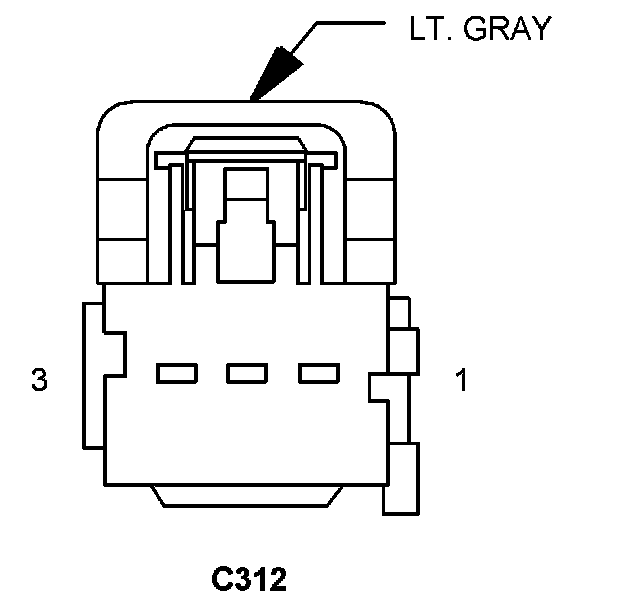

Connector:
Name : C312
Color : LT. GRAY
# of pins : 3
Gender : MALE




Pin Circuit Description
1 X16 20DG/YL AUDIO SIGNAL RIGHT (+)
2 X17 20DG/OR AUDIO SIGNAL LEFT (+)
3 X917 20DG AUDIO SIGNAL COMMON

Component Location - 25




Component Location - 27




Component Location - 57
