C310

Component ID: 382
Component : C310

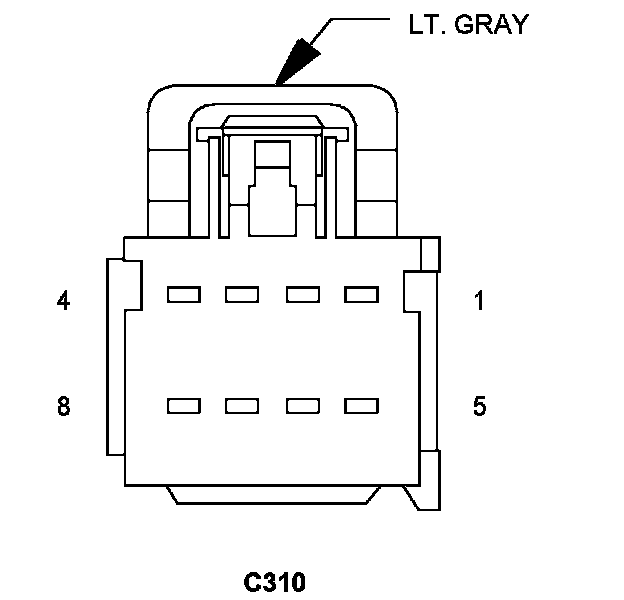

Connector:
Name : C310
Color : LT. GRAY
# of pins : 8
Gender : FEMALE




Pin Circuit Description
1 L53 20DG/WT STOP LAMP SWITCH OUTPUT
2 W13 20BR/LG REAR WIPER MOTOR CONTROL
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P33 20TN/DB DOOR LOCK DRIVER
6 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
7 - -
8 L217 20WT/VT PARK LAMP CONTROL OUTPUT

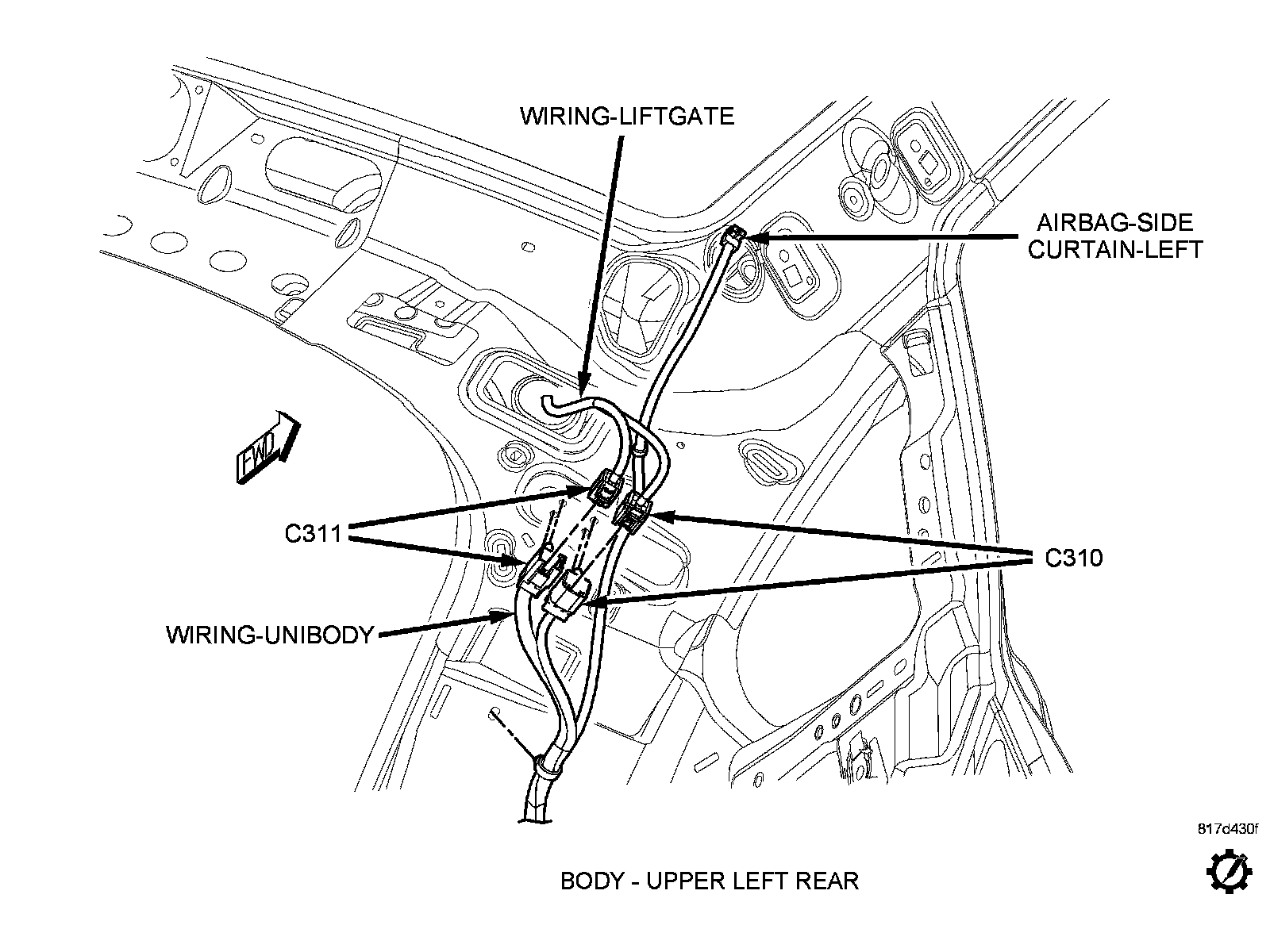

Component Location - 61




Component Location - 64

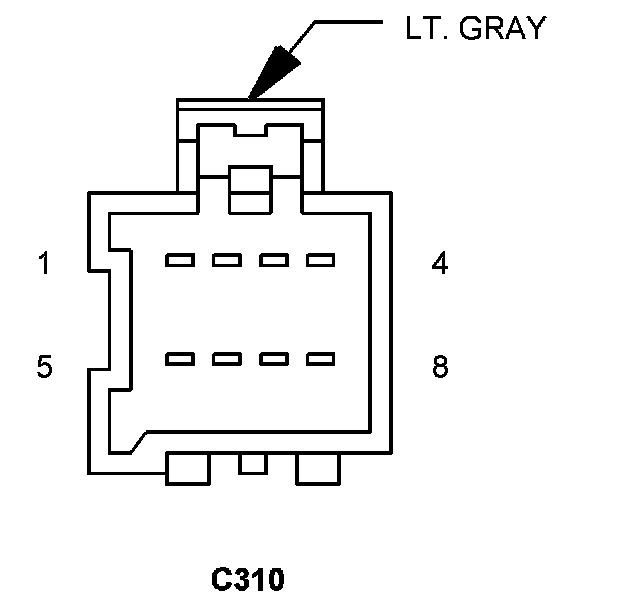

Connector:
Name : C310
Color : LT. GRAY
# of pins : 8
Gender : MALE




Pin Circuit Description
1 L53 20DG/WT STOP LAMP SWITCH OUTPUT
2 W13 20BR/LG REAR WIPER MOTOR CONTROL
3 P240 20LG/YL PASSENGER DOOR UNLOCK DRIVER
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P33 20TN/DB DOOR LOCK DRIVER
6 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
7 - -
8 L217 20WT/VT PARK LAMP CONTROL OUTPUT

Component Location - 61




Component Location - 64
