C309

Component ID: 399
Component : C309

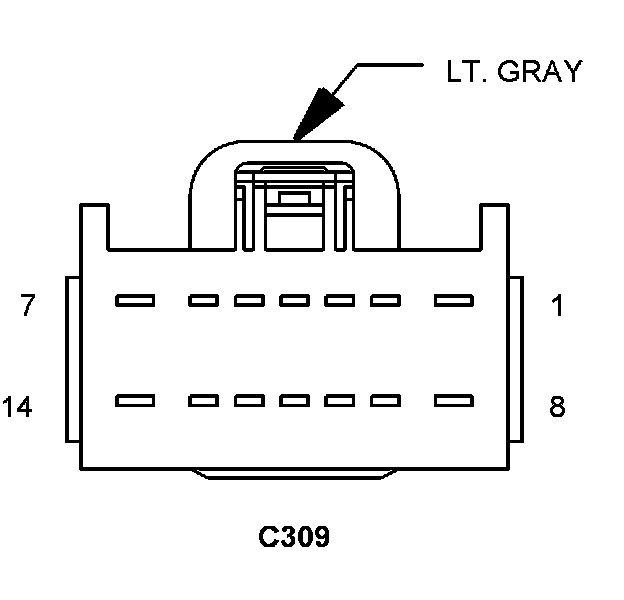

Connector:
Name : C309
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
2 P33 20TN/DB DOOR LOCK DRIVER
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
3 P240 20LG/YL PASSENGER DOOR UNLOCK DRIVER
4 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
5 X52 18GY/DB RIGHT REAR SPEAKER (+)
5 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
6 X58 18GY/OR RIGHT REAR SPEAKER (-)
6 X296 18DG/LB AMPLIFIED RIGHT REAR SPEAKER (-)
6 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)
7 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
8 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 Z964 18BK/WT GROUND
10 - -
11 - -
12 - -
13 P235 20LG/TN SECONDARY LOCK DRIVER
14 P237 20DG/TN SECONDARY UNLOCK DRIVER

Component Location - 46




Component Location - 51




Component Location - 52

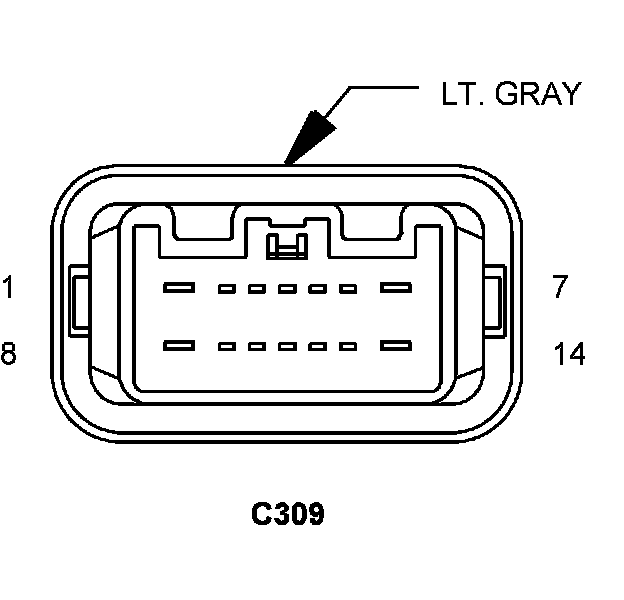

Connector:
Name : C309
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Circuit Description
1 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
2 P33 20TN/DB DOOR LOCK DRIVER
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
5 X52 18GY/DB RIGHT REAR SPEAKER (+)
5 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
6 X58 18GY/OR RIGHT REAR SPEAKER (-)
6 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)
7 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
8 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
9 Z928 20BK/LG GROUND
10 - -
11 - -
12 - -
13 P235 20LG/TN SECONDARY LOCK DRIVER
14 P237 20DG/TN SECONDARY UNLOCK DRIVER

Component Location - 46




Component Location - 51




Component Location - 52
