C308

Component ID: 398
Component : C308

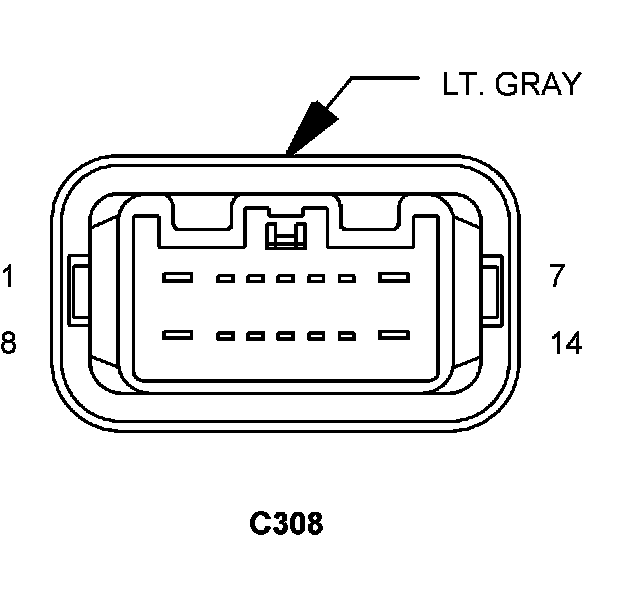

Connector:
Name : C308
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 P33 20TN/DB DOOR LOCK DRIVER
2 P33 20LG/TN DOOR LOCK DRIVER
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
3 P240 20LG/YL PASSENGER DOOR UNLOCK DRIVER
4 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
5 X51 18DG/DB LEFT REAR SPEAKER (+)
5 X205 18GY/LG AMPLIFIED LEFT REAR SPEAKER (+)
6 X57 18DG/BR LEFT REAR SPEAKER (-)
6 X295 18GY/DG AMPLIFIED LEFT REAR SPEAKER (-)
7 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
8 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
9 Z964 18BK/WT GROUND
10 - -
11 - -
12 - -
13 P235 20LG/TN SECONDARY LOCK DRIVER
14 P237 20DG/TN SECONDARY UNLOCK DRIVER

Component Location - 44




Component Location - 51




Component Location - 52

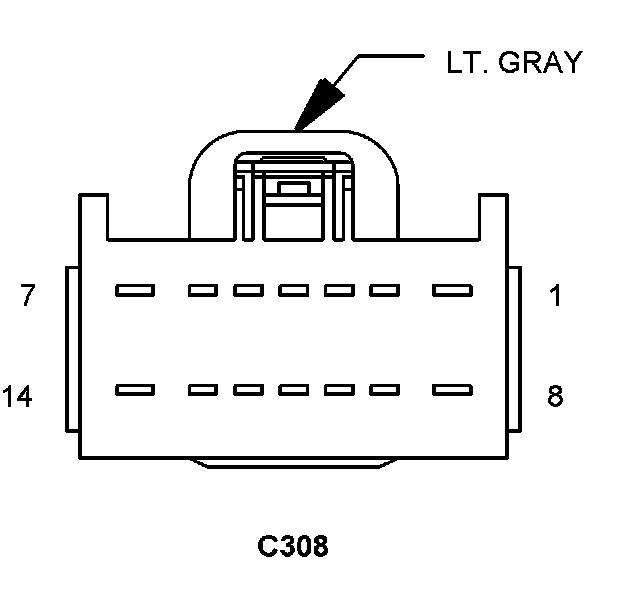

Connector:
Name : C308
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 P33 20TN/DB DOOR LOCK DRIVER
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
4 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
5 X51 18DG/DB LEFT REAR SPEAKER (+)
5 X205 18GY/LG AMPLIFIED LEFT REAR SPEAKER (+)
6 X57 18DG/BR LEFT REAR SPEAKER (-)
6 X295 18GY/DG AMPLIFIED LEFT REAR SPEAKER (-)
7 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
8 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
9 Z928 20BK/LG GROUND
9 Z929 20BK/PK GROUND
10 - -
11 - -
12 - -
13 P235 20LG/TN SECONDARY LOCK DRIVER
14 P237 20DG/TN SECONDARY UNLOCK DRIVER

Component Location - 44




Component Location - 51




Component Location - 52
