C305

Component ID: 389
Component : C305

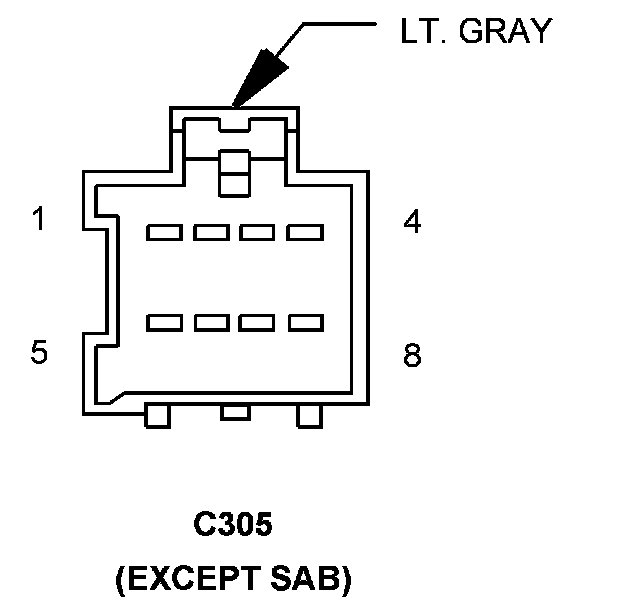

Connector:
Name : C305
Color : LT. GRAY
# of pins : 8
Qualifier : (EXCEPT SAB)
Gender : FEMALE

Pin Circuit Description
1 R261 20LB/TN DRIVER SEAT POSITION SENSOR DATA
2 R263 20LB/BK DRIVER SEAT POSITION SENSOR VOLTAGE
3 Z960 18BK/LB GROUND
4 - -
5 D506 20WT/DG LIN BUS
6 F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
7 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
8 - -

Component Location - 44

Component Location - 53

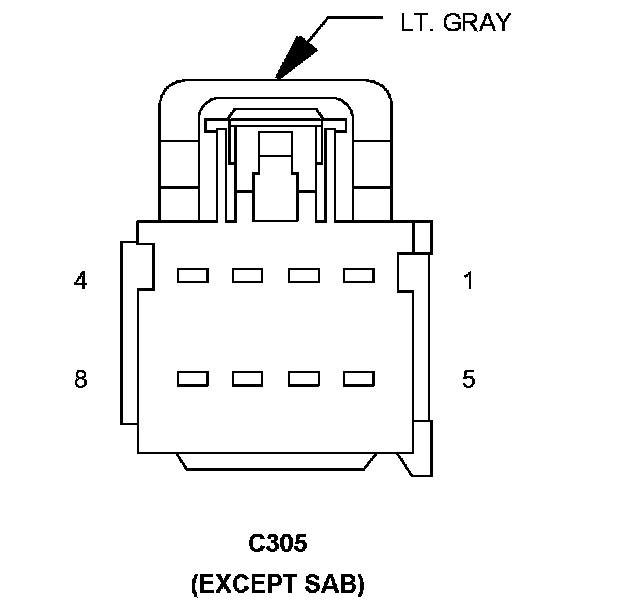

Connector:
Name : C305
Color : LT. GRAY
# of pins : 8
Qualifier : (EXCEPT SAB)
Gender : MALE

Component Location - 53

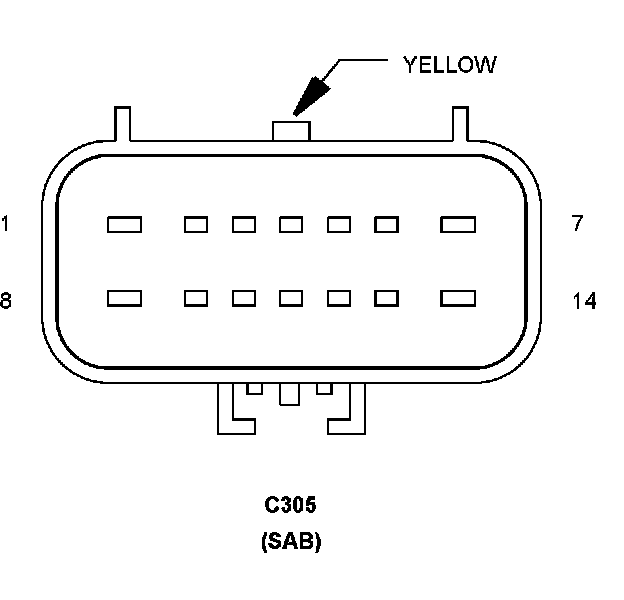

Connector:
Name : C305
Color :
# of pins : 14
Qualifier : (SAB)
Gender : FEMALE

Pin Circuit Description
1 P188 20LG/VT DRIVER SEAT HEATER B(+) DRIVER
2 R5 20LB/VT LEFT SEAT SQUIB 1 LINE 2
3 R7 20LG/GY LEFT SEAT SQUIB 1 LINE 1
4 R261 20LB/TN DRIVER SEAT POSITION SENSOR DATA
5 R263 20LB/BK DRIVER SEAT POSITION SENSOR VOLTAGE
6 D506 20WT/DG LIN BUS
7 Z960 18BK/LB GROUND
8 F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
9 - -
10 - -
11 - -
12 - -
13 - -
14 - -

Component Location - 44

Component Location - 53

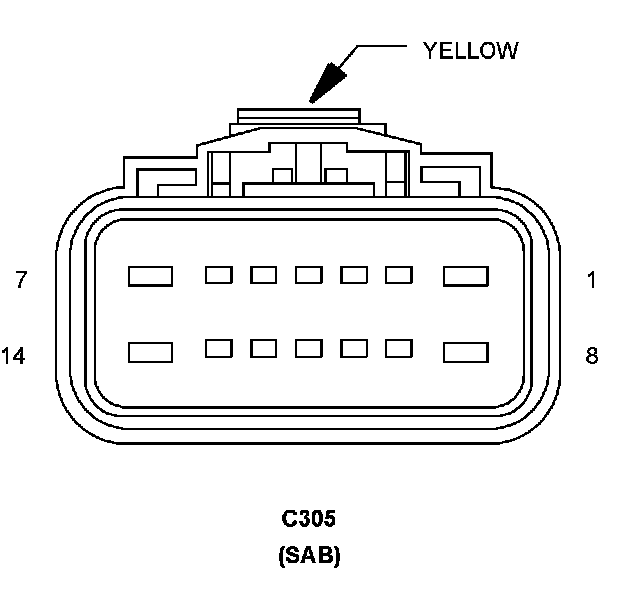

Connector:
Name : C305
Color : YELLOW
# of pins : 14
Qualifier : (SAB)
Gender : MALE

Pin Circuit Description
1 P188 20LG/VT DRIVER SEAT HEATER B(+) DRIVER
2 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
3 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
4 R261 20LB/TN DRIVER SEAT POSITION SENSOR DATA
5 R263 20LB/BK DRIVER SEAT POSITION SENSOR VOLTAGE
6 D506 20WT/DG LIN BUS
7 Z960 18BK/LB GROUND
8 F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
9 - -
10 - -
11 - -
12 - -
13 - -
14 - -

Component Location - 44

Component Location - 53
