C304

Component ID: 395
Component : C304

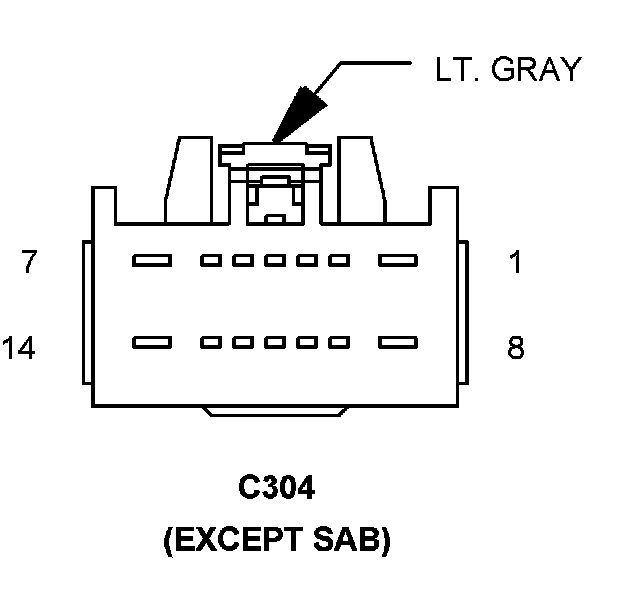

Connector:
Name : C304
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 R6 20VT/LB RIGHT SEAT SQUIB 1 LINE 2
3 R262 20WT/LB PASSENGER SEAT POSITION SENSOR DATA
3 R8 20GY/LG RIGHT SEAT SQUIB 1 LINE 1
4 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
4 R262 20WT/LB PASSENGER SEAT POSITION SENSOR DATA
5 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
6 - -
7 Z961 20BK/YL GROUND
8 Z961 20BK/YL GROUND
9 - -
10 - -
11 - -
11 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
12 - -
13 - -
14 - -

Component Location - 46




Component Location - 53

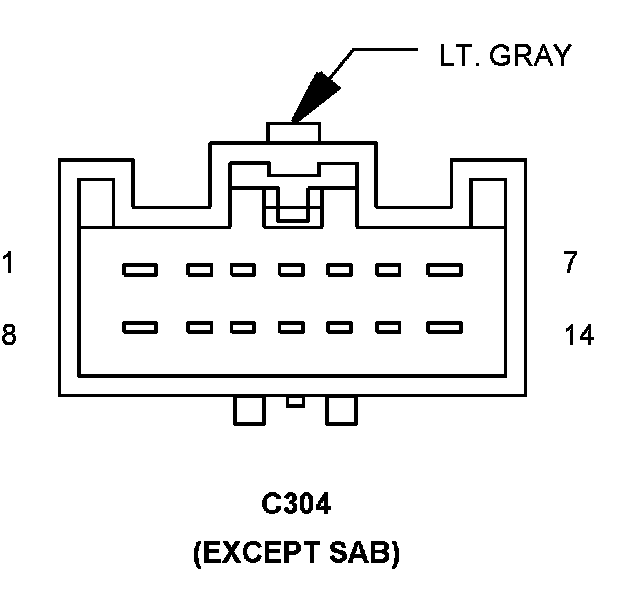

Connector:
Name : C304
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Circuit Description
1 P188 20LG/VT SEAT HEATER B(+) DRIVER
2 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
3 R262 20WT/LB PASSENGER SEAT POSITION SENSOR DATA
3 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
4 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
4 R262 20WT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
5 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
6 - -
7 Z961 20BK/YL GROUND
8 Z961 20BK/YL GROUND
9 - -
10 - -
11 P188 18LG/VT SEAT HEATER B(+) DRIVER
12 - -
13 - -
14 - -

Component Location - 46




Component Location - 53
