C303

Component ID: 392
Component : C303

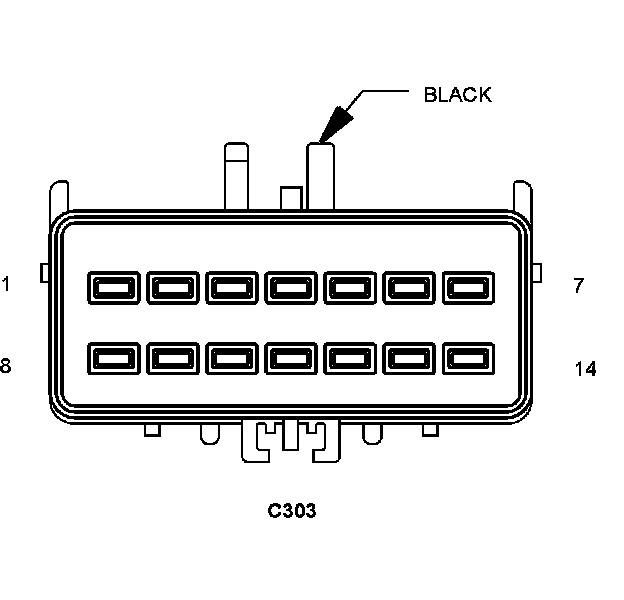

Connector:
Name : C303
Color : BLACK
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 P33 20TN/DB DOOR LOCK DRIVER
2 Z960 14BK/LB GROUND
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
3 Z961 20BK/YL GROUND
4 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
5 Q26 14OR/BK MASTER WINDOW SWITCH PASSENGER (DOWN)
6 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
7 P76 20YL/PK MIRROR COMMON DRIVER
8 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
8 P110 20LG/WT FOLDING MIRROR RETURN
9 P74 20TN/OR RIGHT MIRROR HORIZONTAL DRIVER
9 P699 20LG/DG MIRROR-POWER FOLDING/UNFOLDING
10 Z960 18BK/LB GROUND
10 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
11 C16 20DB/GY FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT
11 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
12 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
12 X154 18GY/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
12 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
13 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
13 X156 18GY/LB AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
13 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
14 F981 14PK/BR IGNITION SWITCH OUTPUT (RUN-ACC)

Component Location - 41




Component Location - 43




Component Location - 49






Connector:
Name : C303
Color : BLACK
# of pins : 14
Gender : MALE




Pin Circuit Description
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 P33 20TN/DB DOOR LOCK DRIVER
2 Z928 14BK/LG GROUND
3 P240 20TN/WT PASSENGER DOOR UNLOCK DRIVER
3 Z929 20BK/PK GROUND
4 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
5 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
6 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
7 P76 20YL/PK MIRROR COMMON DRIVER
8 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
8 P110 20LG/WT FOLDING MIRROR RETURN
9 P74 20TN/OR RIGHT MIRROR HORIZONTAL DRIVER
9 P699 20LG/DG MIRROR-POWER FOLDING/UNFOLDING
10 Z960 20BK/LB GROUND
10 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
11 C16 20DB/GY FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT
11 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
12 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
12 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
12 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
13 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
13 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
13 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
14 F981 14PK/BR IGNITION SWITCH OUTPUT (RUN-ACC)

Component Location - 41




Component Location - 43




Component Location - 49
