C300

Component ID: 394
Component : C300

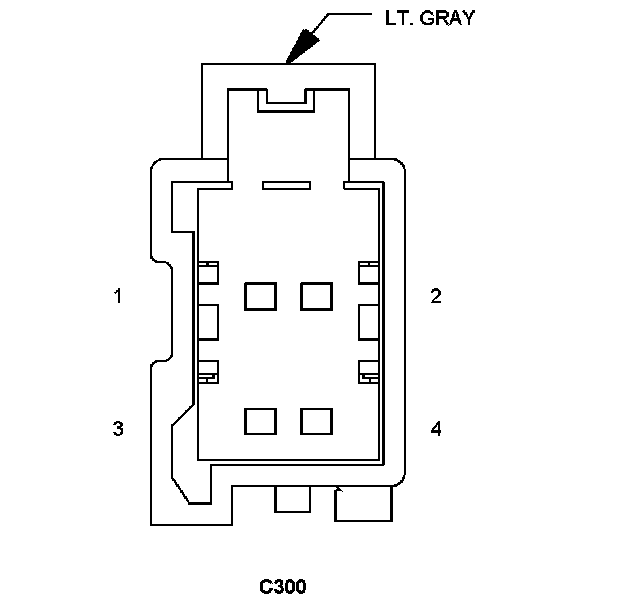

Connector:
Name : C300
Color : LT. GRAY
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 K107 18VT/LB ESM SIGNAL
2 Z965 20BK GROUND
3 T312 20YL/VT REAR DIFFERENTIAL SOLENOID CONTROL
4 T78 20YL SOLENOID SUPPLY VOLTAGE

Component Location - 56

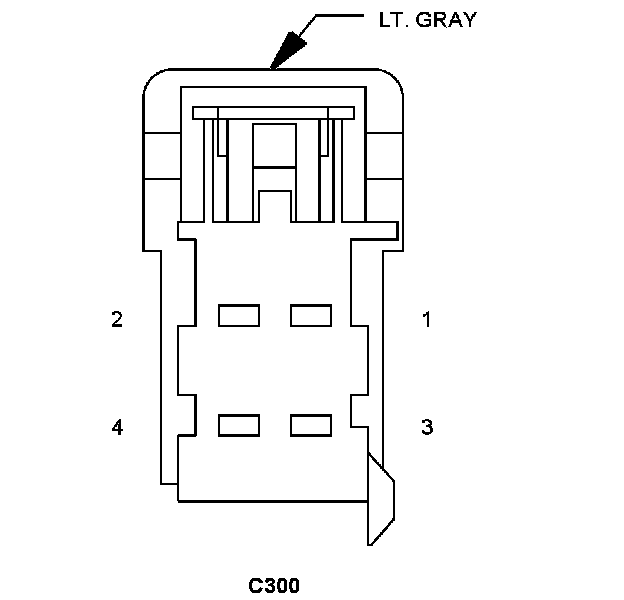

Connector:
Name : C300
Color : LT. GRAY
# of pins : 4
Gender : MALE




Pin Circuit Description
1 K107 20VT/LB ESM SIGNAL
2 Z965 20BK/GY GROUND
3 T312 20YL/VT REAR DIFFERENTIAL SOLENOID CONTROL
4 T78 20YL/BK SOLENOID SUPPLY VOLTAGE

Component Location - 56
