C204

Component ID: 401
Component : C204

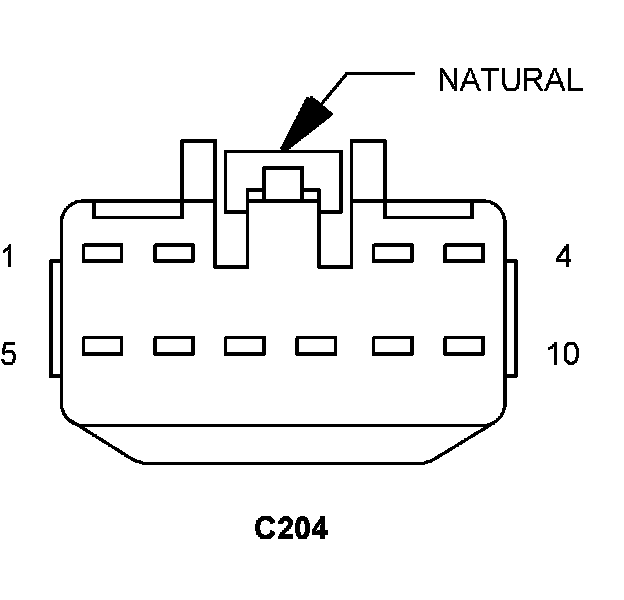

Connector:
Name : C204
Color : NATURAL
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 - -
2 E12 20OR/GY PANEL LAMPS DRIVER
3 Z937 20BK GROUND
4 F996 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P801 18LG 110 VOLT AC LINE 1
6 P805 18LG/LB INVERTER ENABLE SWITCH SIGNAL
7 P809 18LG/TN 110 VOLT AC COMMON
8 - -
9 - -
10 - -

Component Location - 34




Component Location - 36

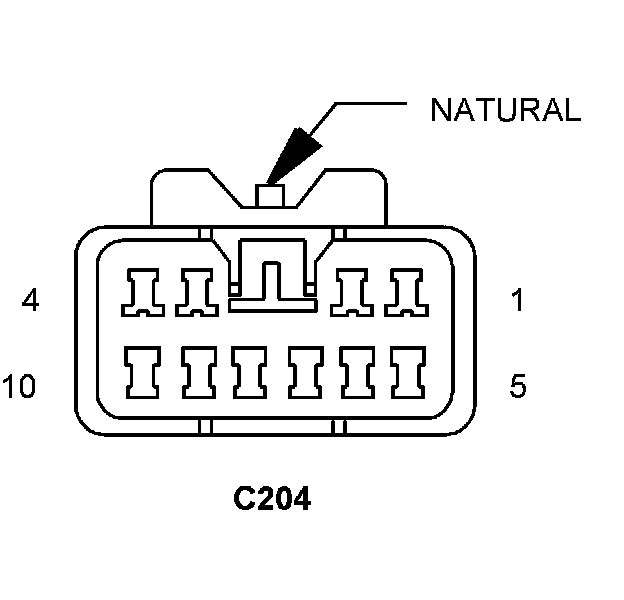

Connector:
Name : C204
Color : NATURAL
# of pins : 10
Gender : MALE




Pin Circuit Description
1 - -
2 E12 20OR/GY PANEL LAMPS DRIVER
3 Z937 20BK/YL GROUND
4 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 P801 18LG/PK 110 VOLT AC LINE 1
6 P805 18LG/DB INVERTER ENABLE SWITCH SIGNAL
7 P809 18LG/LB 110 VOLT AC COMMON
8 - -
9 - -
10 - -

Component Location - 34




Component Location - 36
