C203

Component ID: 385
Component : C203

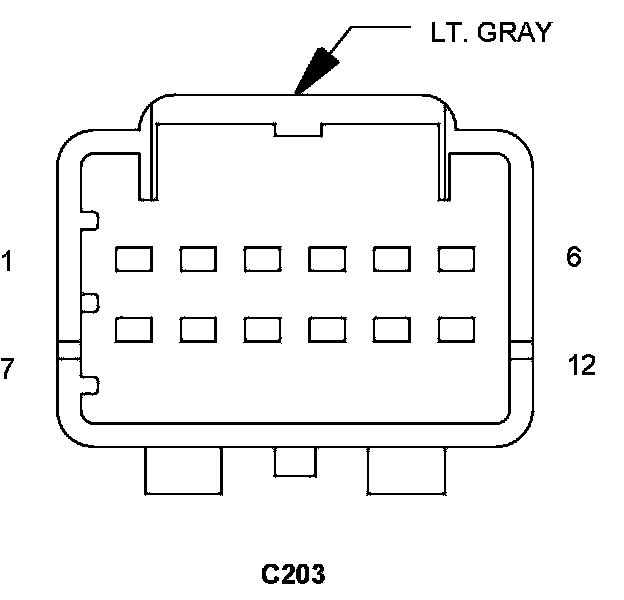

Connector:
Name : C203
Color : LT. GRAY
# of pins : 12
Gender : FEMALE




Pin Circuit Description
1 A927 20RD/GY FUSED B(+)
2 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
3 - -
4 - -
5 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
6 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
8 Q6 20OR/LG SUNROOF SWITCH SUPPLY
9 Z937 20BK/YL GROUND
10 - -
11 - -
12 - -

Component Location - 26




Component Location - 30




Component Location - 32




Component Location - 37

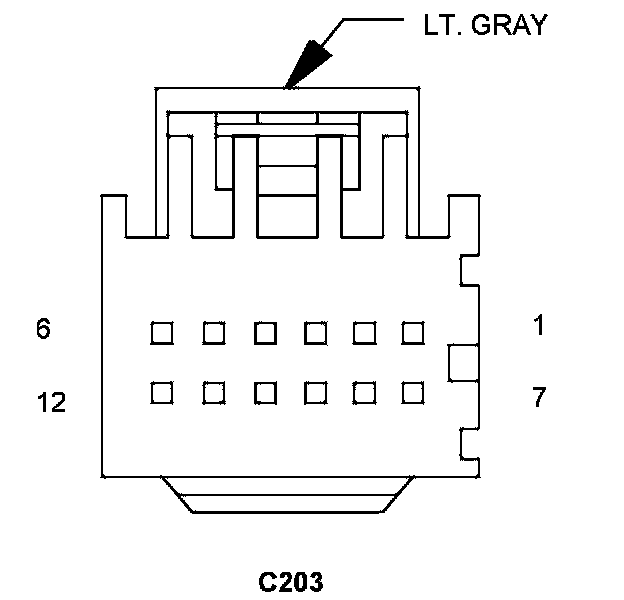

Connector:
Name : C203
Color : LT. GRAY
# of pins : 12
Gender : MALE




Pin Circuit Description
1 A927 18RD/GY FUSED B(+)
2 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
3 - -
4 - -
5 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
6 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
8 Q6 20OR/LG SUNROOF SWITCH SUPPLY
9 Z937 18BK/YL GROUND
10 - -
11 - -
12 - -

Component Location - 26




Component Location - 30




Component Location - 32




Component Location - 37
