C202
Component ID: 387
Component : C202

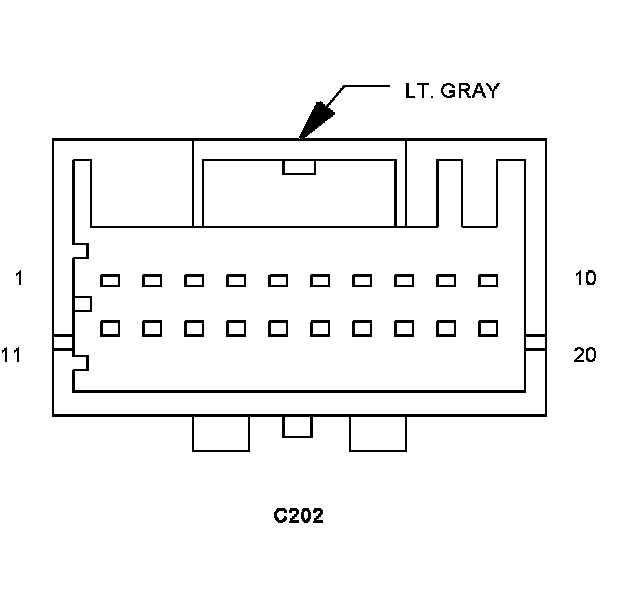

Connector:
Name : C202
Color : LT. GRAY
# of pins : 20
Gender : FEMALE
Pin Circuit Description
1 X712 20DG/LB MICROPHONE 1 IN (+)
Pin Circuit Description
1 A415 20RD/TN FUSED B(+) (I.O.D.)
2 X722 20LB/DG MICROPHONE 2 IN (+)
3 X730 20GY/YL VOICE RECOGNITION/PHONE SWITCH SIGNAL
3 D54 20WT/PK CAN B BUS (-)
4 X792 20LB/TN MICROPHONE IN (-)
4 D55 20WT/OR CAN B BUS (+)
5 X793 20DG/YL MICROPHONE FEED
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 X835 20OR/BK SENSOR GROUND
7 Z936 18BK/LB GROUND
8 Z941 20BK/WT GROUND
9 L1 20WT/LG BACKUP LAMP SWITCH OUTPUT
10 A417 20RD/DG FUSED B(+) (I.O.D.)
11 G38 20GY/BK UGDO ENABLE CONTROL CIRCUIT
12 M24 20YL/WT COURTESY LAMPS DRIVER
13 M27 20YL/LB READING/RAIL LAMPS DRIVER
14 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
15 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
16 Q6 20OR/LG SUNROOF SWITCH SUPPLY
17 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
18 - -
19 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
20 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
Component Location - 25
Component Location - 31
Component Location - 38

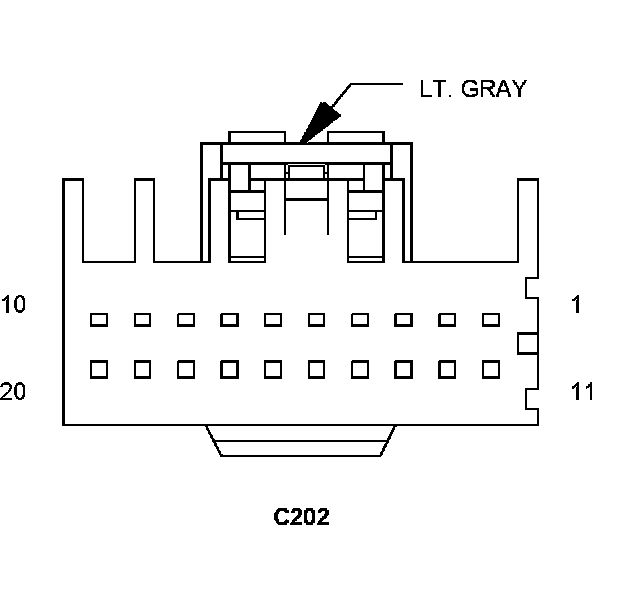

Connector:
Name : C202
Color : LT. GRAY
# of pins : 20
Gender : MALE
Pin Circuit Description
1 X712 20DG/LB MICROPHONE 1 IN (+)
Pin Circuit Description
1 A415 20RD/TN FUSED B(+) (I.O.D.)
2 X722 20LB/DG MICROPHONE 2 IN (+)
3 X730 20GY/YL VOICE RECOGNITION/PHONE SWITCH SIGNAL
3 D54 20WT/PK CAN B BUS (-)
4 X792 20LB/TN MICROPHONE IN (-)
4 D55 20WT/OR CAN B BUS (+)
5 X793 20DG/YL MICROPHONE FEED
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 X835 20OR/BK SENSOR GROUND
7 Z936 18BK/LB GROUND
8 Z941 20BK/WT GROUND
9 L1 20WT/LG BACKUP LAMP SWITCH OUTPUT
10 A417 20RD/DG FUSED B(+) (I.O.D.)
11 G38 20GY/BK UGDO ENABLE CONTROL CIRCUIT
12 M24 20YL/WT COURTESY LAMPS DRIVER
13 M27 20YL/LB READING/RAIL LAMPS DRIVER
14 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
15 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
16 Q6 20OR/LG SUNROOF SWITCH SUPPLY
17 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
18 - -
19 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
20 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
Component Location - 25
Component Location - 31
Component Location - 38
