C201
Component ID: 381
Component : C201

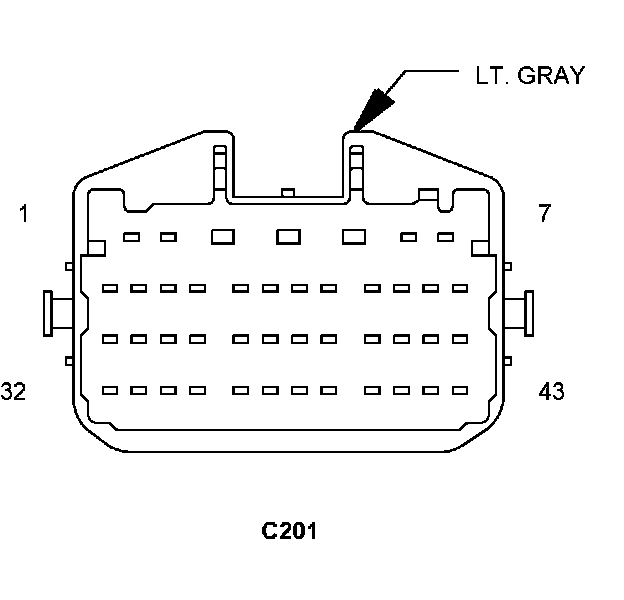

Connector:
Name : C201
Color : LT. GRAY
# of pins : 43
Gender : FEMALE
Pin Circuit Description
1 A411 20RD/LG FUSED B(+) (I.O.D.)
2 A412 20RD/DB FUSED B(+) (I.O.D.)
3 A413 18RD/LB FUSED B(+) (I.O.D.)
4 C7 12DB/PK BLOWER MOTOR CONTROL
4 A415 20RD/TN FUSED B(+) (I.O.D.)
5 A417 20RD/DG FUSED B(+) (I.O.D.)
5 C7 12DB/PK BLOWER MOTOR CONTROL
6 - -
7 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
8 T5 20DG/LG AUTOSTICK UPSHIFT SIGNAL
9 V71 20VT/OR S/C SIGNAL 1
10 V72 20OR/VT S/C SIGNAL 2
11 V937 20VT/LG S/C SWITCH GROUND
12 A932 18RD/BR FUSED B(+)
13 A952 20RD/OR FUSED B(+)
14 R64 20LB/WT PASSENGER SQUIB 2 LINE 1
15 - -
16 A927 20RD/GY FUSED B(+)
17 - -
18 A935 20RD/LB FUSED B(+)
19 A999 18RD/PK FUSED B(+)
20 X298 18GY/LG RIGHT INSTRUMENT PANEL SPEAKER (-)
21 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
21 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
22 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
22 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
23 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
23 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
24 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
24 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
25 X51 18DG/DB LEFT REAR SPEAKER (+)
26 X52 18GY/DB RIGHT REAR SPEAKER (+)
27 X58 18GY/OR RIGHT REAR SPEAKER (-)
28 - -
29 R61 20LG/VT DRIVER SQUIB 2 LINE 2
30 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
31 R63 20LG/BK DRIVER SQUIB 2 LINE 1
32 - -
33 D64 20WT/LB CAN C BUS (-)
34 D65 20WT/BK CAN C BUS (+)
35 X57 18DG/BR LEFT REAR SPEAKER (-)
36 - -
37 - -
38 - -
39 - -
40 X208 18GY/DG RIGHT INSTRUMENT PANEL SPEAKER (+)
41 X209 18GY/TN LEFT INSTRUMENT PANEL SPEAKER (+)
42 X299 18GY/BR LEFT INSTRUMENT PANEL SPEAKER (-)
43 - -
Component Location - 25
Component Location - 31
Component Location - 40
Component Location - 42

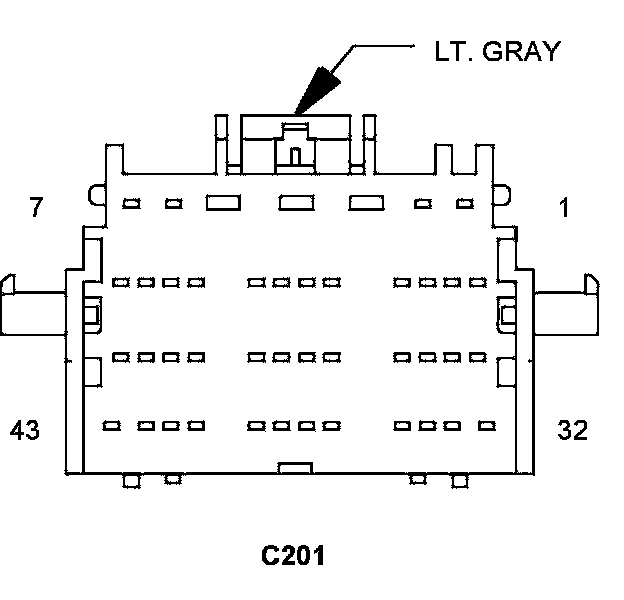

Connector:
Name : C201
Color : LT. GRAY
# of pins : 43
Gender : MALE
Pin Circuit Description
1 A411 20RD/LG FUSED B(+) (I.O.D.)
2 A412 20RD/DB FUSED B(+) (I.O.D.)
3 A413 18RD/LB FUSED B(+) (I.O.D.)
4 A415 20RD/TN FUSED B(+) (I.O.D.)
4 C7 12DB/PK BLOWER MOTOR CONTROL
5 C7 12DB/PK BLOWER MOTOR CONTROL
5 A417 20RD/DG FUSED B(+) (I.O.D.)
6 - -
7 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
8 T5 20DG/LG AUTOSTICK UPSHIFT SIGNAL
9 V71 20VT/OR S/C SIGNAL 1
10 V72 20OR/VT S/C SIGNAL 2
11 V937 20VT/LG S/C SWITCH GROUND
12 A932 18RD/BR FUSED B(+)
13 A952 20RD/OR FUSED B(+)
14 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
15 - -
16 A927 20RD/GY FUSED B(+)
17 - -
18 A935 20RD/LB FUSED B(+)
19 A999 16RD/PK FUSED B(+)
20 X298 18GY/LG RIGHT INSTRUMENT PANEL SPEAKER (-)
21 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
21 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
22 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
22 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
23 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+)
23 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
24 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-)
24 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
25 X51 18DG/DB LEFT REAR SPEAKER (+)
26 X52 18GY/DB RIGHT REAR SPEAKER (+)
27 X58 18GY/OR RIGHT REAR SPEAKER (-)
28 - -
29 R61 18LG/VT DRIVER SQUIB 2 LINE 2
30 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
31 R63 18LG/BK DRIVER SQUIB 2 LINE 1
32 - -
33 D64 20WT/LB CAN C BUS (-)
34 D65 20WT/BK CAN C BUS (+)
35 X57 18DG/BR LEFT REAR SPEAKER (-)
36 - -
37 - -
38 - -
39 - -
40 X208 18GY/DG RIGHT INSTRUMENT PANEL SPEAKER (+)
41 X209 18GY/TN LEFT INSTRUMENT PANEL SPEAKER (+)
42 X299 18GY/BR LEFT INSTRUMENT PANEL SPEAKER (-)
43 - -
Component Location - 25
Component Location - 31
Component Location - 40
Component Location - 42
