C106

Component ID: 390
Component : C106

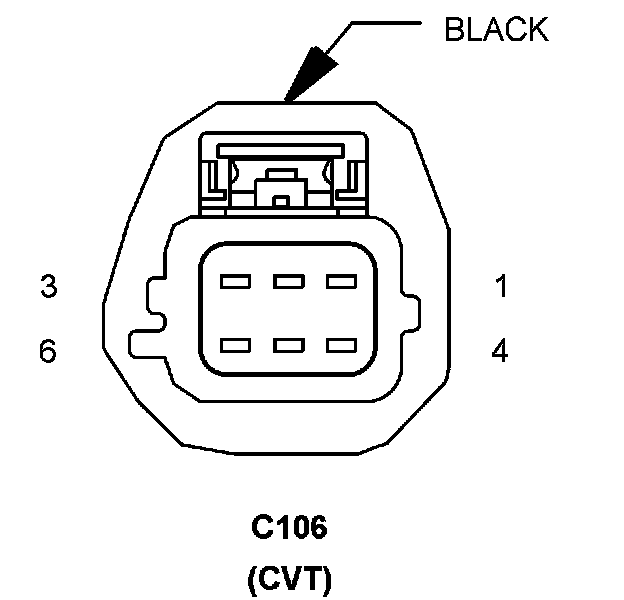

Connector:
Name : C106
Color : BLACK
# of pins : 6
Qualifier : (CVT)
Gender : FEMALE

Pin Circuit Description
1 T13 18DG/TN SENSOR GROUND
2 T14 18DG/BK INPUT SPEED SIGNAL
3 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
4 - -
5 T52 18DG/WT OUTPUT SPEED SIGNAL
6 T130 18TN/DG OUTPUT SPEED SENSOR GROUND

Component Location - 23

Connector:
Name : C106
Color : BLACK
# of pins : 6
Qualifier : (CVT)
Gender : MALE
