C105

Component ID: 378
Component : C105

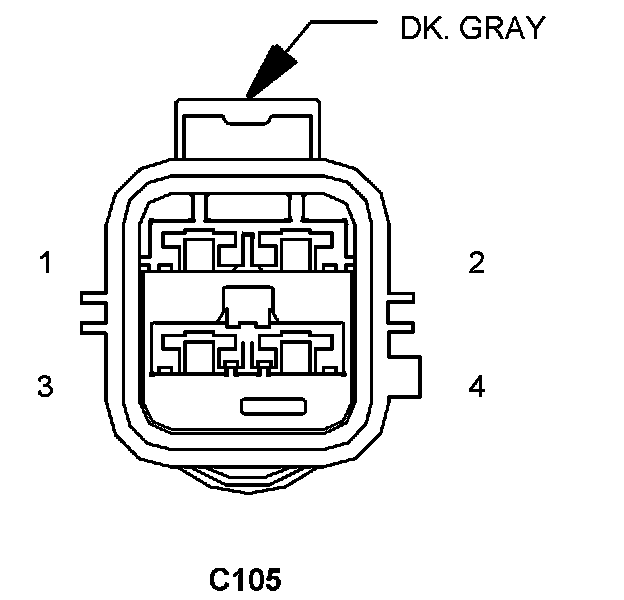

Connector:
Name : C105
Color : DK. GRAY
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 A14 12RD/YL FUSED B(+)
2 A16 12RD/BR FUSED B(+)
3 A285 12RD/DB FUSED B(+)
4 A286 10RD/WT FUSED B(+)

Component Location - 8




Component Location - 11






Connector:
Name : C105
Color : DK. GRAY
# of pins : 4
Gender : MALE




Pin Circuit Description
1 A14 12RD/YL FUSED B(+)
2 A16 12RD/BR FUSED B(+)
3 A285 12RD/DB FUSED B(+)
4 A286 10RD/WT FUSED B(+)

Component Location - 8




Component Location - 11
