C104

Component ID: 388
Component : C104

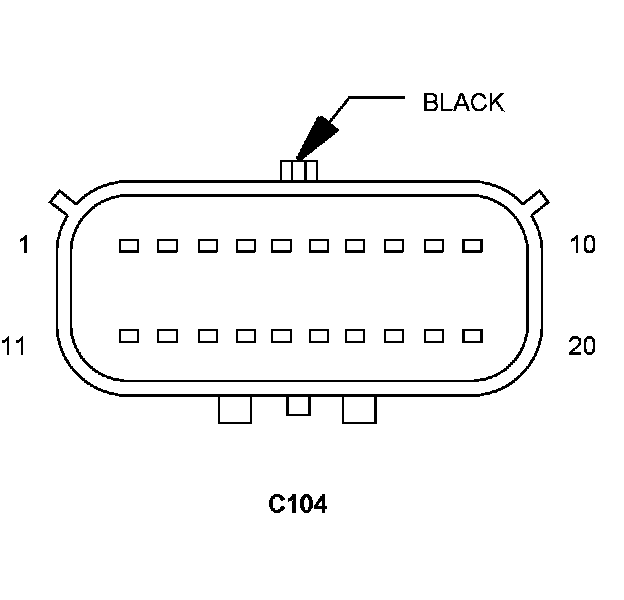

Connector:
Name : C104
Color : BLACK
# of pins : 20
Gender : FEMALE




Pin Circuit Description
1 B3 20LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
2 B4 20LG/BK LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
3 K852 20BR/VT 5 VOLT SUPPLY
4 K854 20VT/BR 5 VOLT SUPPLY
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 K167 20BR/YL APP SENSOR GROUND 1
7 K23 20BR/OR APP SIGNAL 1
8 K29 20WT/BR APP SIGNAL 2
9 K400 20BR/VT APP SENSOR GROUND 2
10 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
11 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL
12 F856 20YL/PK 5 VOLT SUPPLY
13 K858 20BR/GY 5 VOLT SUPPLY
14 - -
15 A935 20RD/LB FUSED B(+)
16 T141 20YL/RD CLUTCH INTERLOCK SIGNAL
17 T26 20DG/OR CLUTCH UPSTOP SWITCH SIGNAL
18 G4 20VT/LB DYNAMICS SENSOR SUPPLY
18 G4 18VT/LB DYNAMICS SENSOR SUPPLY
19 - -
20 G94 20VT/DB DYNAMICS SENSOR GROUND
20 G94 18VT/DB DYNAMICS SENSOR GROUND

Component Location - 10




Component Location - 11




Component Location - 12

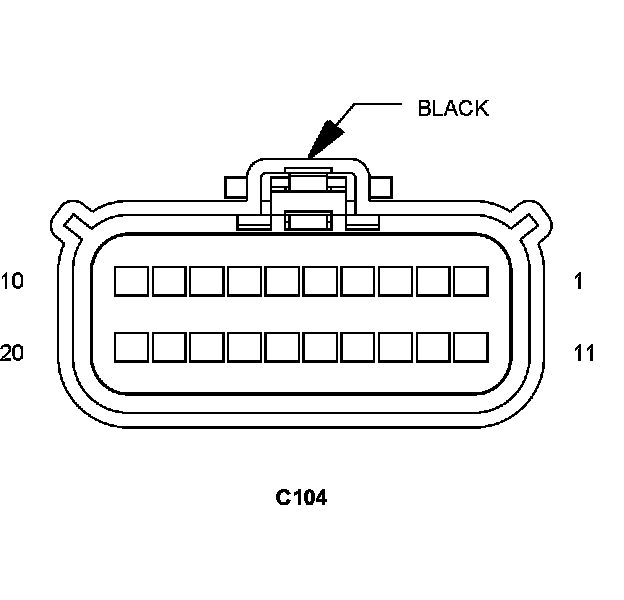

Connector:
Name : C104
Color : BLACK
# of pins : 20
Gender : MALE




Pin Circuit Description
1 B3 20LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
2 B4 20LG/BK LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
3 K852 20BR/VT 5 VOLT SUPPLY
4 K854 20VT/BR 5 VOLT SUPPLY
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 K167 20BR/YL APP SENSOR GROUND 1
7 K23 20BR/OR APP SIGNAL 1
8 K29 20WT/BR APP SIGNAL 2
9 K400 20BR/VT APP SENSOR GROUND 2
10 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
11 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL
12 F856 20YL/PK 5 VOLT SUPPLY
13 K858 20BR/GY 5 VOLT SUPPLY
14 A924 20RD FUSED B(+)
15 A935 20RD/LB FUSED B(+)
16 T141 20YL/RD CLUTCH INTERLOCK SIGNAL
17 T26 20DG/OR CLUTCH UPSTOP SWITCH SIGNAL
18 G4 20VT/LB DYNAMICS SENSOR SUPPLY
19 L53 20DG/WT STOP LAMP SWITCH OUTPUT
20 G94 20VT/DB DYNAMICS SENSOR GROUND

Component Location - 10




Component Location - 11




Component Location - 12
