C100

Component ID: 383
Component : C100

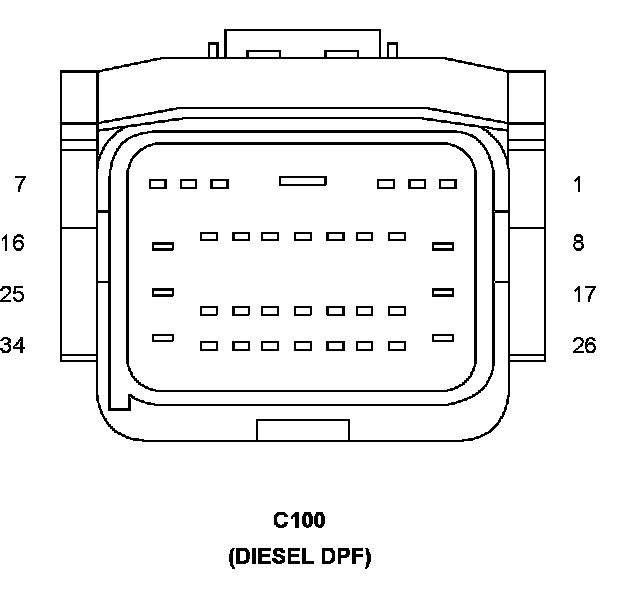

Connector:
Name : C100
Color :
# of pins : 34
Qualifier : (DIESEL DPF)
Gender : FEMALE

Pin Circuit Description
1 G6 16VT/GY OIL PRESSURE SIGNAL
2 N1 18DB/OR FUSED FUEL PUMP CONTROL OUTPUT
3 Z909 16BK/WT GROUND
4 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F344 18DB/LB FUSED MAIN RELAY OUTPUT
6 V71 20VT/OR S/C SIGNAL 1
7 - -
8 A203 14RD/BR GLOW PLUG 2 CONTROL
9 F855 20PK/YL 5 VOLT SUPPLY
10 - -
11 K957 20BK/OR MAF SENSOR GROUND
12 T750 16YL/GY STARTER CONTROL OUTPUT
13 K157 20BR/OR MAF SENSOR SIGNAL
14 K92 20BR/YL GEN OUTPUT SIGNAL
15 G329 20VT/OR CHARGE INDICATOR SIGNAL
16 A204 14RD/YL GLOW PLUG 3 CONTROL
17 A208 14RD/OR GLOW PLUG 4 CONTROL
18 K354 20BR/LG EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY
19 K355 20BR/DG EXHAUST DIFFERENTIAL PRESSURE SIGNAL
20 K951 20BR/DB EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND
21 F344 18DB/LB FUSED ASD RELAY OUTPUT
22 K41 20DB/LB O2 1/1 REFERENCE SIGNAL
23 K53 20DB/LG EGR COOLER BYPASS CONTROL
24 K137 20DB/OR BOOST PRESSURE CONTROL
25 K79 18BR/LB O2 1/1 HEATER CONTROL
26 K89 20BR/LG O2 1/1 POSITIVE CURRENT CONTROL
27 K103 20BR/VT O2 1/1 PUMP CELL CURRENT TRIM
28 K352 20BR/OR PRE-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
29 K353 20OR/BR POST-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
30 K902 20BR/DG O2 1/1 NEGATIVE CURRENT CONTROL
31 K914 20BR/WT SENSOR GROUND
32 K916 20BR/PK SENSOR GROUND
33 - -
34 A202 14RD/WT GLOW PLUG 1 CONTROL

Component Location - 8

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15

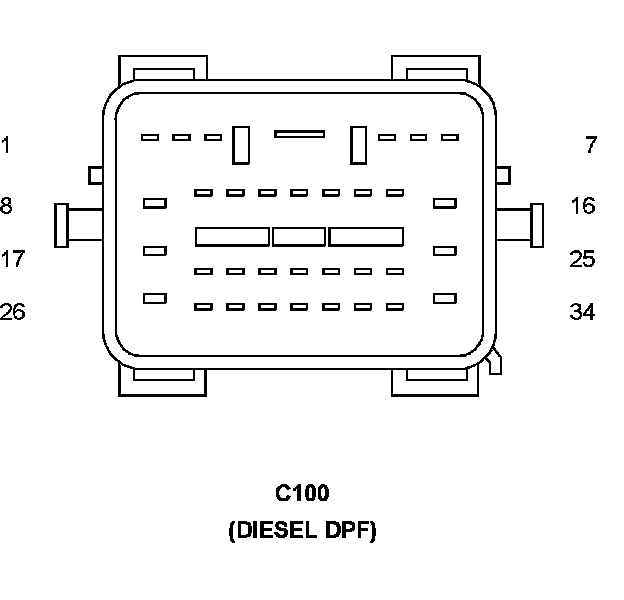

Connector:
Name : C100
Color :
# of pins : 34
Qualifier : (DIESEL DPF)
Gender : MALE

Pin Circuit Description
1 G6 16VT/GY OIL PRESSURE SIGNAL
2 - -
3 - -
4 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F344 18DB/LB FUSED MAIN RELAY OUTPUT
6 V71 20VT/OR S/C SIGNAL 1
7 - -
8 A203 14RD/BR GLOW PLUG 2 CONTROL
9 F855 20PK/YL 5 VOLT SUPPLY
10 - -
11 K957 20BK/OR MAF SENSOR GROUND
12 T750 16YL/GY STARTER CONTROL OUTPUT
13 K157 20BR/OR MAF SENSOR SIGNAL
14 K92 20BR/YL GEN OUTPUT SIGNAL
15 G329 20VT/OR CHARGE INDICATOR SIGNAL
16 A204 14RD/YL GLOW PLUG 3 CONTROL
17 A208 14RD/OR GLOW PLUG 4 CONTROL
18 K354 20BR/LG EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY
19 K355 20BR/DG EXHAUST DIFFERENTIAL PRESSURE SIGNAL
20 K951 20BR/DB EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND
21 F344 18BR/LB FUSED ASD RELAY OUTPUT
22 K41 20DB/LB O2 1/1 REFERENCE SIGNAL
23 K53 20DB/LG EGR COOLER BYPASS CONTROL
24 K137 20DB/OR BOOST PRESSURE CONTROL
25 K79 18BR/LB O2 1/1 HEATER CONTROL
26 K89 18BR/LG O2 1/1 POSITIVE CURRENT CONTROL
27 K103 18BR/VT O2 1/1 PUMP CELL CURRENT TRIM
28 K352 20BR/OR PRE-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
29 K353 20OR/BR POST-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
30 K902 18BR/DG O2 1/1 NEGATIVE CURRENT CONTROL
31 K914 20BR/WT SENSOR GROUND
32 K916 20BR/PK SENSOR GROUND
33 - -
34 A202 14RD/WT GLOW PLUG 1 CONTROL

Component Location - 8

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15

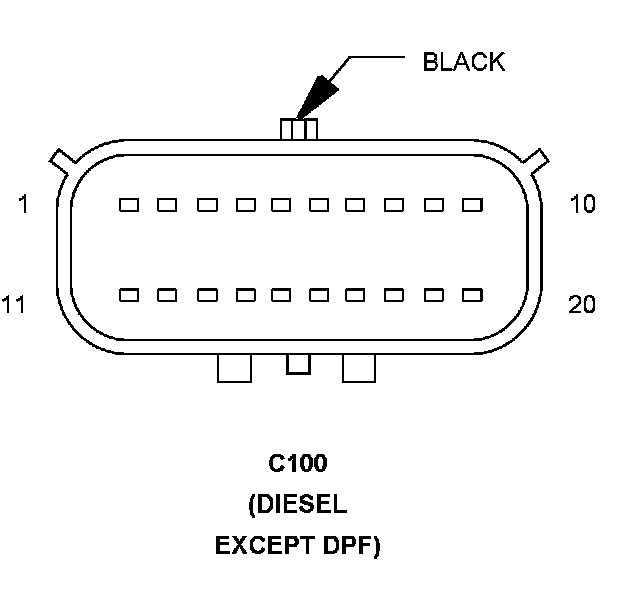

Connector:
Name : C100
Color : BLACK
# of pins : 20
Qualifier : (DIESEL EXCEPT DPF)
Gender : FEMALE

Pin Circuit Description
1 G6 16DB/LG EOP SIGNAL
2 - -
3 Z909 16BK/WT GROUND
4 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F344 18DB/LB FUSED MAIN RELAY OUTPUT
6 V71 20VT/OR S/C SIGNAL 1
7 A202 14RD/WT GLOW PLUG 1 CONTROL
8 A203 14RD/BR GLOW PLUG 2 CONTROL
9 A204 14RD/YL GLOW PLUG 3 CONTROL
10 A208 14RD/OR GLOW PLUG 4 CONTROL
11 K957 20BK/OR MAF SENSOR GROUND
12 T750 16YL/GY STARTER CONTROL OUTPUT
13 K157 20BR/OR MAF SENSOR SIGNAL
14 K92 20BR/YL GEN OUTPUT SIGNAL
15 G329 20VT/OR CHARGE INDICATOR SIGNAL
16 F855 20PK/YL 5 VOLT SUPPLY
17 K35 20DB/VT EGR SOLENOID CONTROL
18 - -
19 - -
20 - -

Component Location - 8

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15

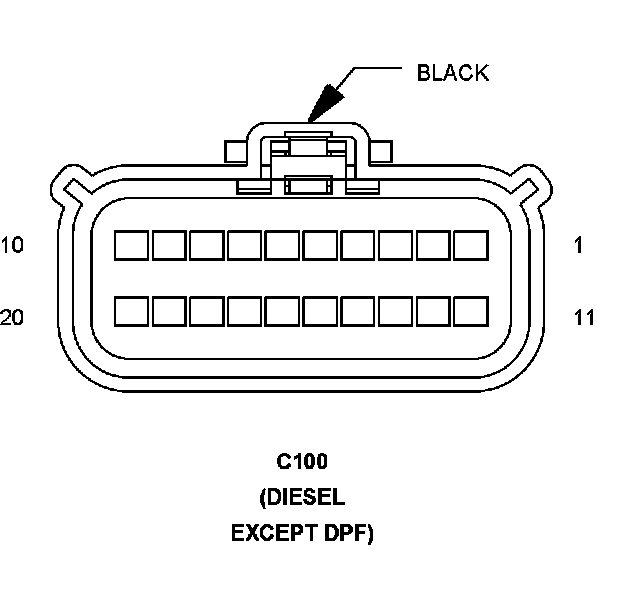

Connector:
Name : C100
Color : BLACK
# of pins : 20
Qualifier : (DIESEL EXCEPT DPF)
Gender : MALE

Pin Circuit Description
1 G6 16VT/GY EOP SIGNAL
2 N1 18DB/OR FUEL PUMP CONTROL OUTPUT
3 Z909 16BK/WT GROUND
4 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F344 18DB/LB FUSED MAIN RELAY OUTPUT
6 V71 20VT/OR S/C SIGNAL 1
7 A202 14RD/WT GLOW PLUG 1 CONTROL
8 A203 14RD/BR GLOW PLUG 2 CONTROL
9 A204 14RD/YL GLOW PLUG 3 CONTROL
10 A208 14RD/OR GLOW PLUG 4 CONTROL
11 K957 20BK/OR MAF SENSOR GROUND
12 T750 16YL/GY STARTER CONTROL OUTPUT
13 K157 20BR/OR MAF SENSOR SIGNAL
14 K92 20BR/YL GEN OUTPUT SIGNAL
15 G329 20VT/OR CHARGE INDICATOR SIGNAL
16 F855 20PK/YL 5 VOLT SUPPLY
17 K35 20DB/VT EGR SOLENOID CONTROL
18 - -
19 - -
20 - -

Component Location - 8

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15

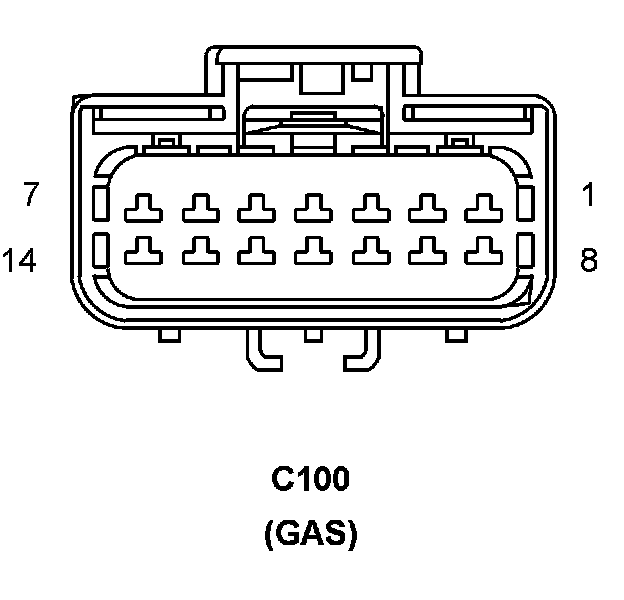

Connector:
Name : C100
Color :
# of pins : 14
Qualifier : (GAS)
Gender : FEMALE

Pin Circuit Description
1 K548 14GY/YL TURBO COOLANT PUMP CONTROL OUTPUT
2 A804 20RD/GY GEN SENSE
3 F856 20YL/PK 5 VOLT SUPPLY
3 Z909 14BK/WT GROUND
4 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F343 18DB/LG FUSED MAIN RELAY OUTPUT
5 F344 18DB/LB FUSED MAIN RELAY OUTPUT
6 T750 16YL/GY STARTER CONTROL OUTPUT
7 Z909 16BK/WT GROUND
7 K137 20DB/OR WASTEGATE SOL CONTROL
8 T750 16YL/GY STARTER CONTROL OUTPUT
9 F344 18DB/LB FUSED MAIN RELAY OUTPUT
9 K152 20BR/LB TIP RETURN
10 K75 20DB/OR VEHICLE SPEED SIGNAL
10 K153 20BR/YL TIP SIGNAL
11 K914 20DB/PK SENSOR GROUND
13 - -
14 - -

Component Location - 8

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15

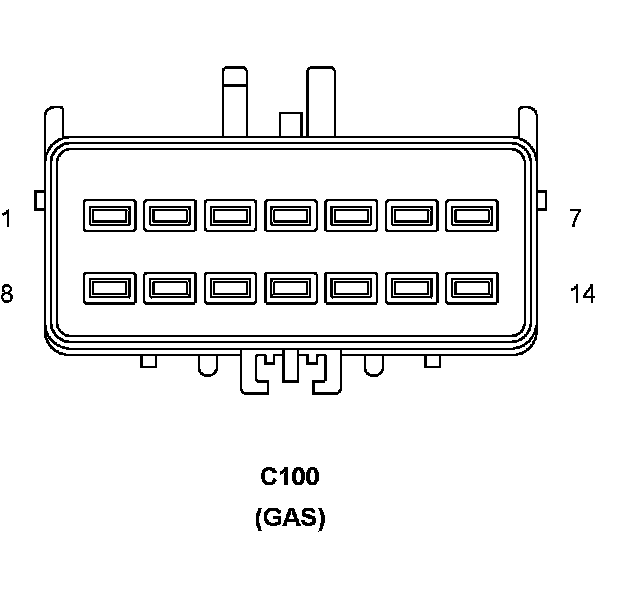

Connector:
Name : C100
Color :
# of pins : 14
Qualifier : (GAS)
Gender : MALE

Component Location - 11

Component Location - 14

Component Location - 17

Component Location - 19

Component Location - 15
