Antenna, Radio

Component ID: 377

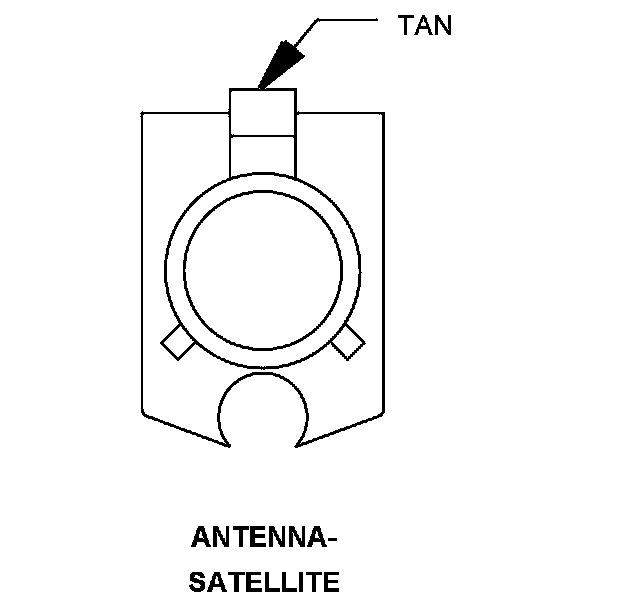

Component : ANTENNA-SATELLITE

Connector:
Name : ANTENNA-SATELLITE
Color : TAN
# of pins : 2




Pin Circuit Description
1 D106 6WT/LG SATELLITE ANTENNA SIGNAL
2 D126 WT/TN SATELLITE ANTENNA SHIELD

Component Location - 62
