Amplifier, Sound System

Component ID: 281
Component : AMPLIFIER-RADIO

Connector:

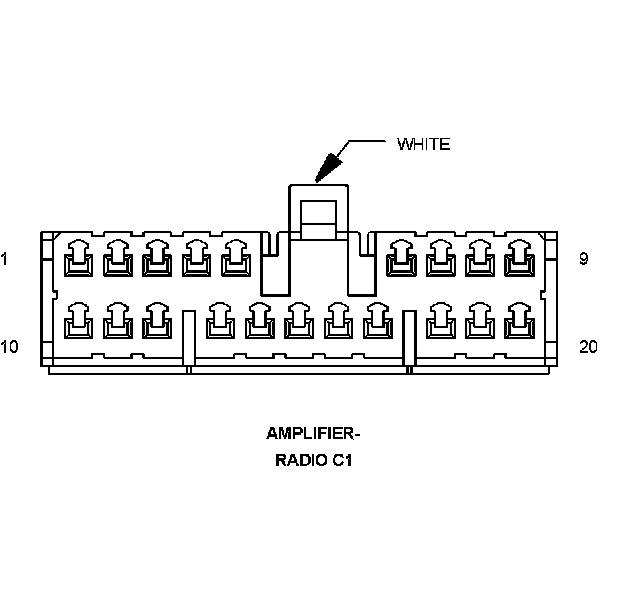

Name : AMPLIFIER-RADIO C1
Color : WHITE
# of pins : 20




Pin Circuit Description
1 X209 18GY/TN LEFT INSTRUMENT PANEL SPEAKER (+)
2 X208 18GY/DG RIGHT INSTRUMENT PANEL SPEAKER (+)
3 - -
4 A419 18RD/DG FUSED B(+) (I.O.D.)
4 A419 18RD/YL FUSED B(+) (I.O.D.)
5 - -
6 D55 20WT/OR CAN B BUS (+)
7 X51 18DG/DB LEFT REAR SPEAKER (+)
8 X52 18GY/DB RIGHT REAR SPEAKER (+)
9 Z960 16BK/LB GROUND
10 X299 18GY/BR LEFT INSTRUMENT PANEL SPEAKER (-)
11 X298 18GY/LG RIGHT INSTRUMENT PANEL SPEAKER (-)
12 - -
13 A420 18WT/RD FUSED B(+) (I.O.D.)
14 - -
15 - -
16 - -
17 D54 20WT/PK CAN B BUS (-)
18 X57 18DG/BR LEFT REAR SPEAKER (-)
19 X58 18GY/OR RIGHT REAR SPEAKER (-)
20 Z960 16BK/LB GROUND

Component Location - 59






Connector:

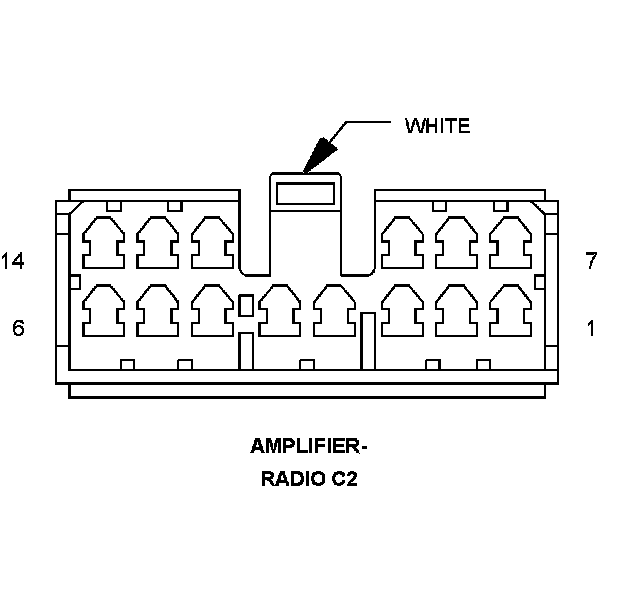

Name : AMPLIFIER-RADIO C2
Color : WHITE
# of pins : 14




Pin Circuit Description
1 X153 18DG/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
2 X154 18GY/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
3 X205 18GY/LG AMPLIFIED LEFT REAR SPEAKER (+)
4 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
5 X214 18DG/DB AMPLIFIED LIFTGATE SPEAKER 1 (+)
6 X212 18GY/DB AMPLIFIED LIFTGATE SPEAKER 2 (+)
7 X155 18DG/BK AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
8 X156 18GY/LB AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
9 X295 18GY/DG AMPLIFIED LEFT REAR SPEAKER (-)
10 - -
11 - -
12 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)
12 X296 18DG/LB AMPLIFIED RIGHT REAR SPEAKER (-)
13 X284 18DG/TN AMPLIFIED LIFTGATE SPEAKER 1 (-)
14 X282 18GY/TN AMPLIFIED LIFTGATE SPEAKER 2 (-)

Component Location - 59
