Alarm Module, (Vehicle Antitheft)

Component ID: 222
Component : MODULE-INTRUSION TRANSCEIVER

Connector:

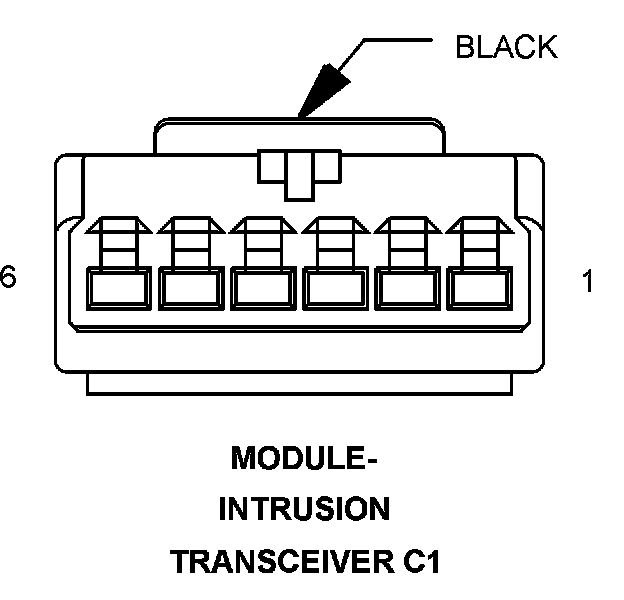

Name : MODULE-INTRUSION TRANSCEIVER C1
Color : BLACK
# of pins : 6




Pin Circuit Description
1 A415 20RD/TN FUSED B(+) (I.O.D.)
2 - -
3 D55 20WT/OR CAN B BUS (+)
4 D54 20WT/PK CAN B BUS (-)
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 Z941 20BK/WT GROUND

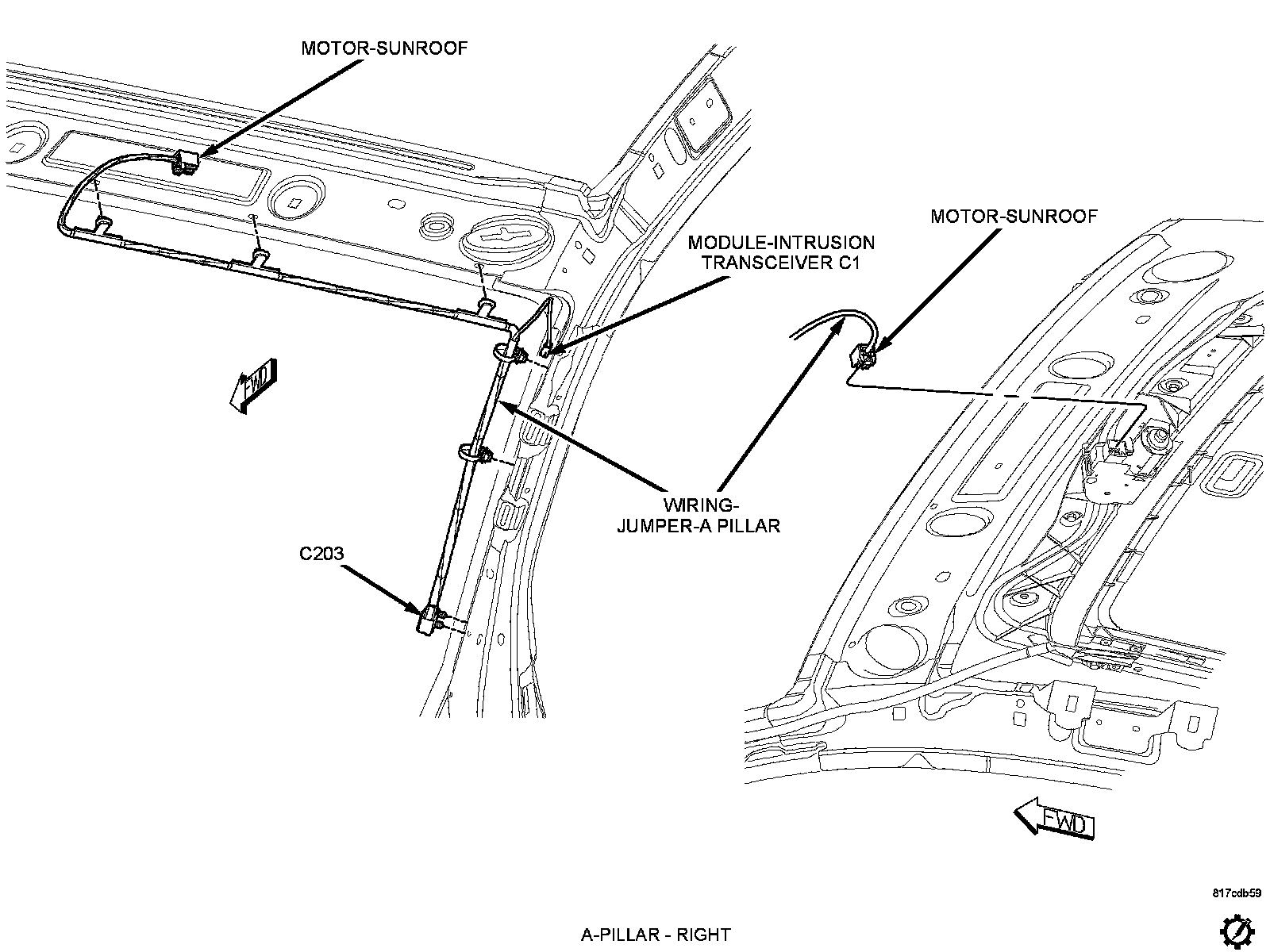

Component Location - 37




Component Location - 39






Connector:

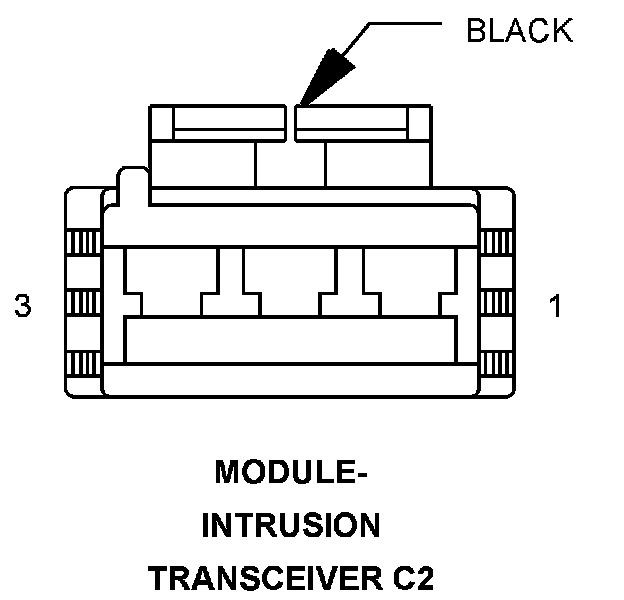

Name : MODULE-INTRUSION TRANSCEIVER C2
Color : BLACK
# of pins : 3




Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z941 20BK/WT GROUND

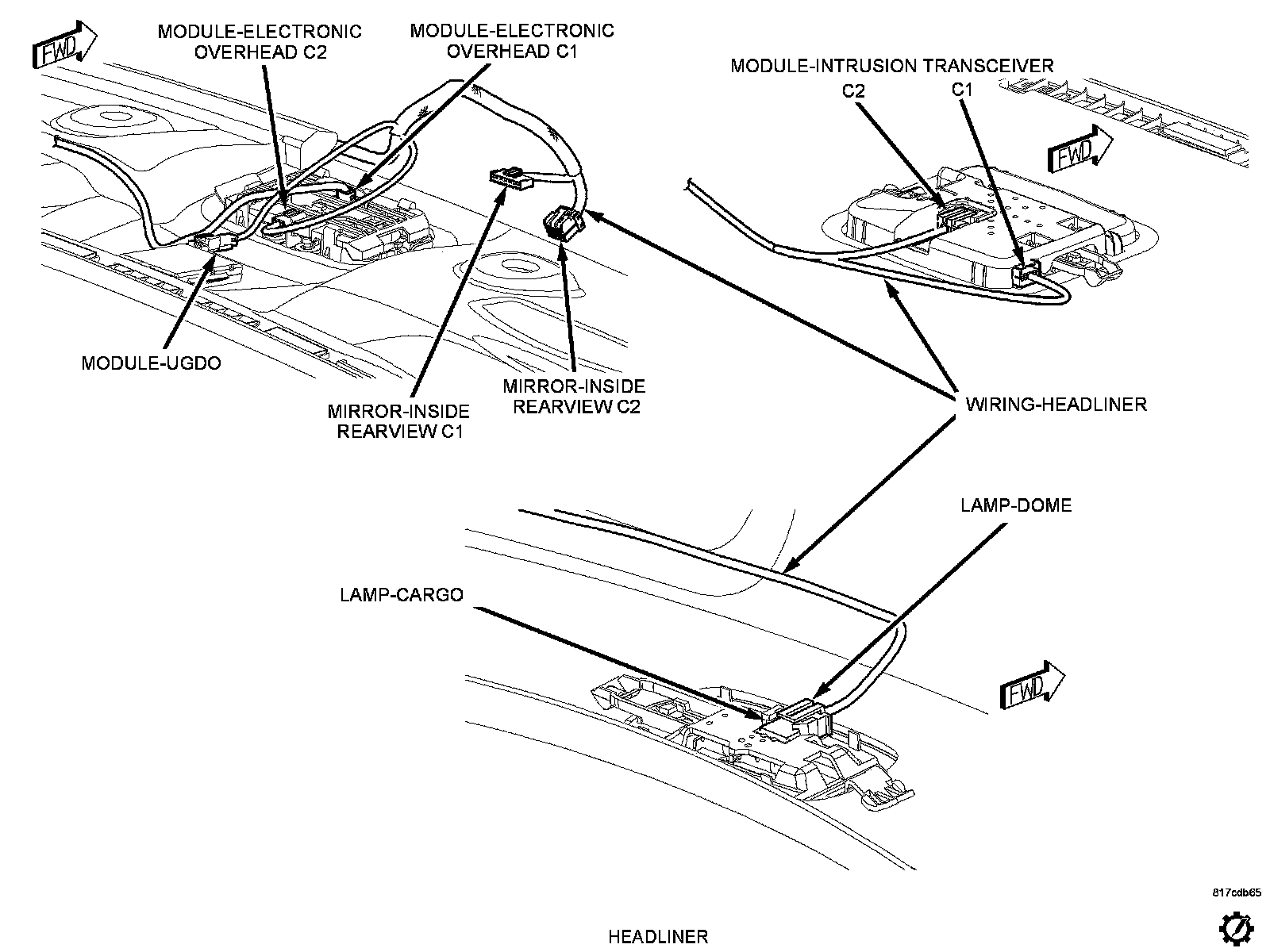

Component Location - 37




Component Location - 39
