Air Door Actuator / Motor, HVAC

Component ID: 240
Component : ACTUATOR-RECIRCULATION DOOR

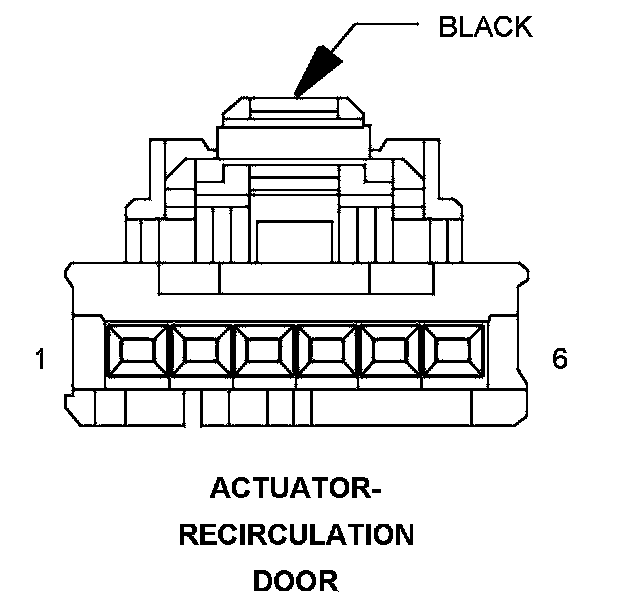

Connector:
Name : ACTUATOR-RECIRCULATION DOOR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
Pin Circuit Description
1 C132 20DB/GY RECIRCULATION DOOR DRIVER (B)
2 - -
3 - -
4 - -
5 - -
6 C132 20DB/GY RECIRCULATION DOOR DRIVER (B)
6 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)

Component Location - 28




Component Location - 31
