Liftgate Spoiler - Removal

REMOVAL

NON SRT 4





1. Open liftgate.
2. Remove liftgate upper molding Removal.
3. Remove 5 body plugs.
4. Remove four nuts (3) on spoiler studs.
5. Disengage center push pin.
6. If equipped, remove satellite wire (2) connector (1).
7. Disconnect CHMSL wire.
8. Remove spoiler (5) from vehicle (4).

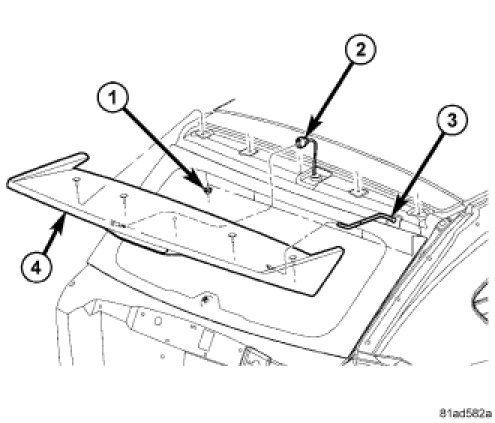

SRT 4





1. Open liftgate.
2. Remove liftgate upper molding Removal.
3. Remove the body plugs.
4. Remove the nuts (1) from the spoiler studs.
5. Disconnect the electrical connector (2) from the center high mount stop lamp.
6. If equipped, remove satellite wire (2) connector (1).
7. Disconnect the washer hose (3) from the washer nozzle.
8. Remove spoiler (4) from the liftgate.
9. Clean adhesive residue with MOPAR(R) Super Clean solvent or equivalent.
