Heater-Seat Cushion-Right

Component ID: 346
Component : HEATER-SEAT CUSHION-RIGHT

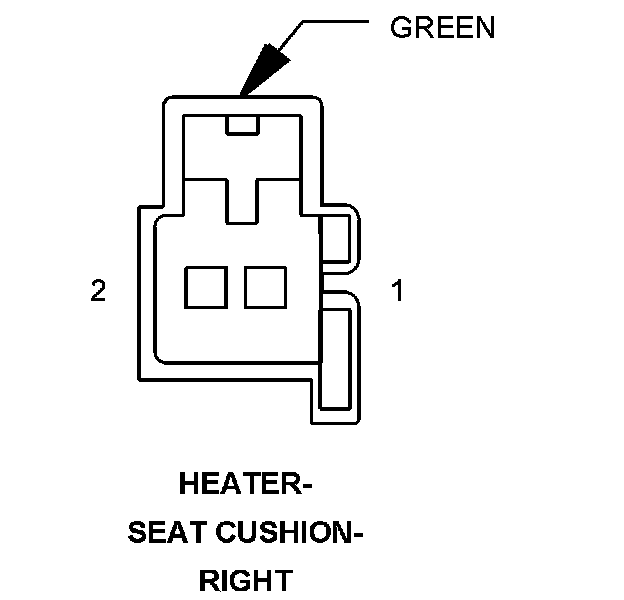

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 Z961 20BK/YL GROUND

Component Location - 53

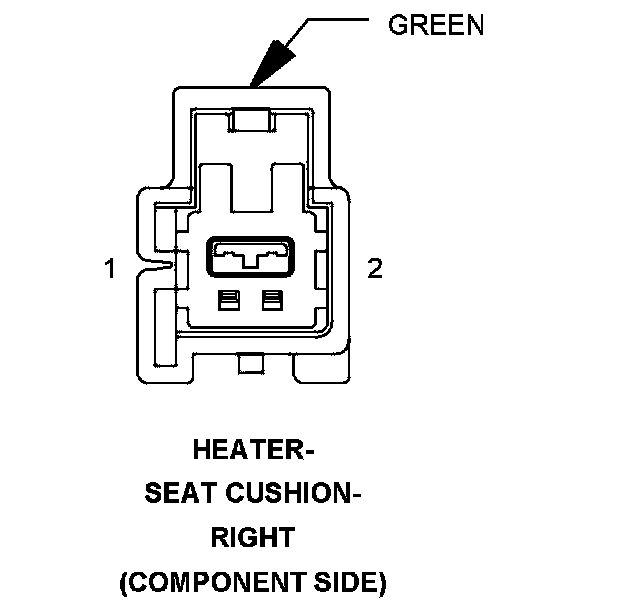

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P188 18BK RIGHT SEAT HEATER B(+) DRIVER
2 Z940 18BK GROUND

Component Location - 53
