Heater-Seat Cushion-Left

Component ID: 348
Component : HEATER-SEAT CUSHION-LEFT

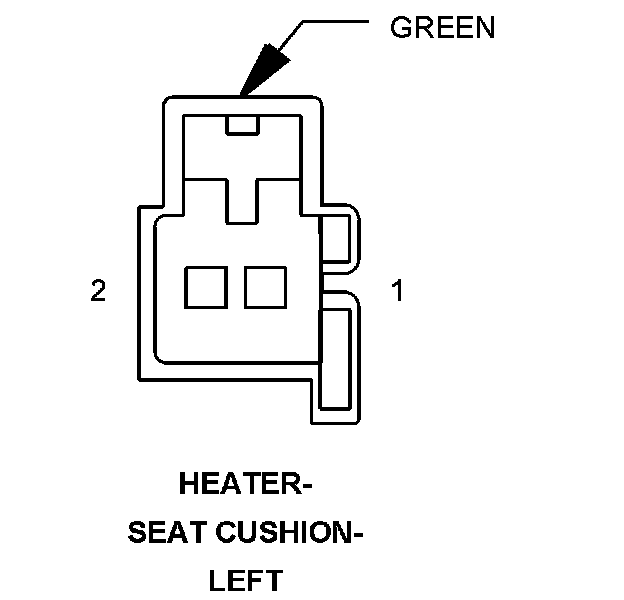

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
2 Z960 18BK/LB GROUND

Component Location - 53

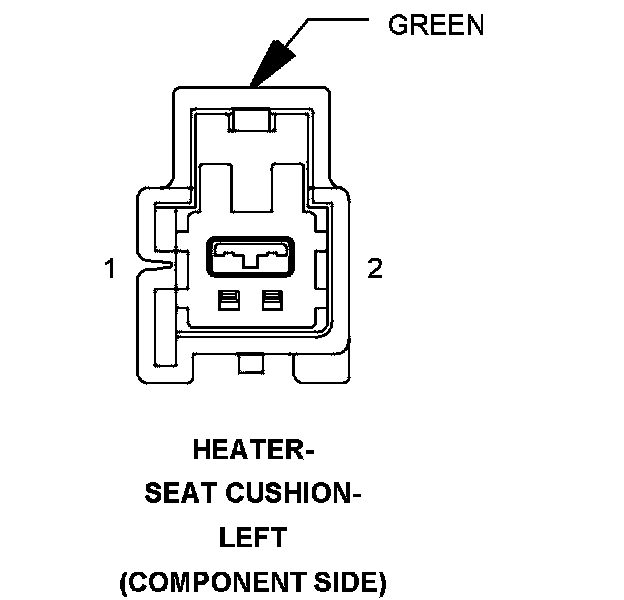

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P187 18BK LEFT SEAT HEATER B(+) DRIVER
2 Z960 18BK GROUND

Component Location - 53
