Heater-Seat Back-Right

Component ID: 347
Component : HEATER-SEAT BACK-RIGHT

Connector:

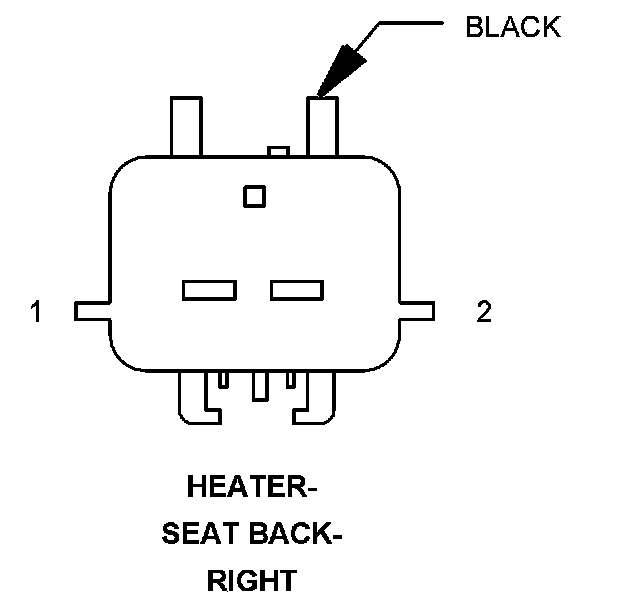

Name : HEATER-SEAT BACK-RIGHT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P188 18BK RIGHT SEAT HEATER B(+) DRIVER
2 Z940 18BK GROUND



Connector:
Name : HEATER-SEAT BACK-RIGHT
Color : BLACK
# of pins : 2

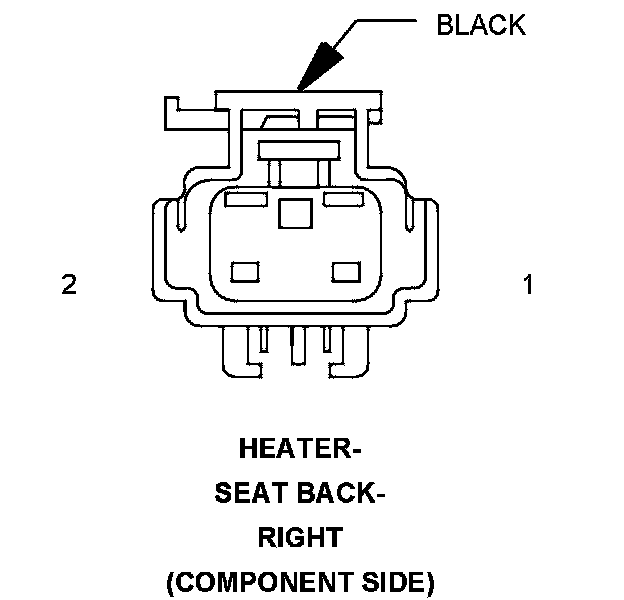

Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P188 18YL RIGHT SEAT HEATER B(+) DRIVER
2 Z940 18YL GROUND
