Removal







REMOVAL





1. Remove the drain trough Removal.
2. Push up the front center of the sunshade (1) to pop out the front two feet.

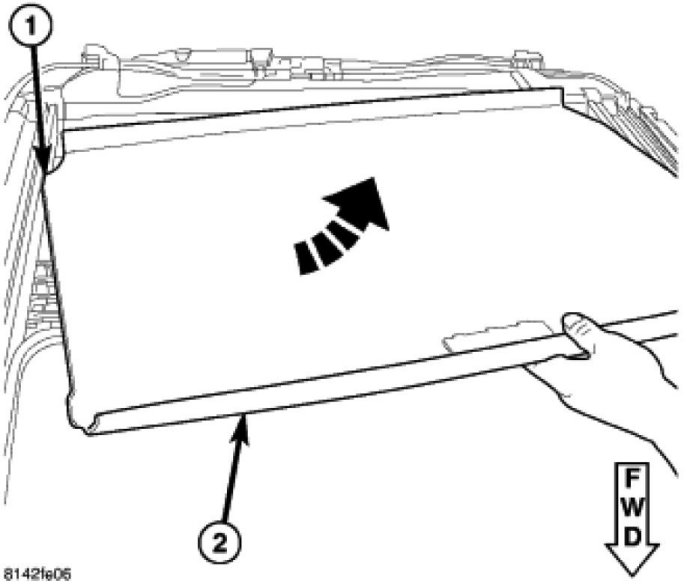

3. Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
