Mirror-Outside Rearview-Driver

Component ID: 339
Component : MIRROR-OUTSIDE REARVIEW-DRIVER

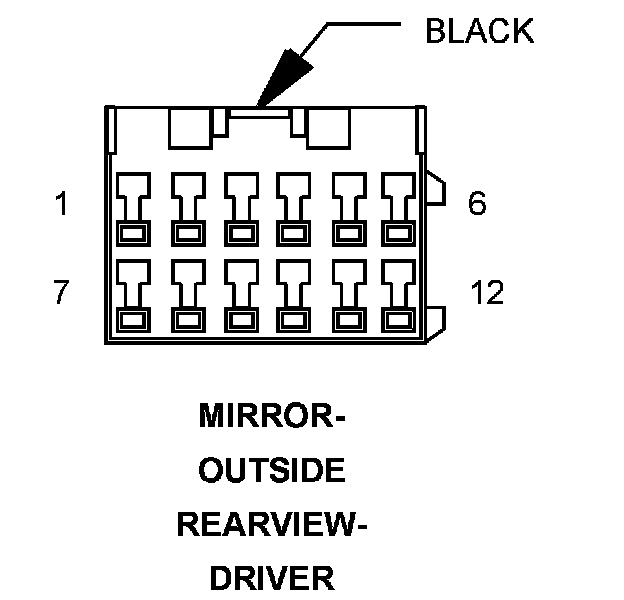

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color : BLACK
# of pins : 12




Pin Circuit Description
1 P71 20TN/DG LEFT MIRROR VERTICAL DRIVER
Pin Circuit Description
1 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
2 P76 20YL/PK MIRROR COMMON DRIVER
3 P75 20TN/OR LEFT MIRROR HORIZONTAL DRIVER
3 P74 20TN/OR RIGHT MIRROR HORIZONTAL DRIVER
4 C16 20DB/GY FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT
5 Z928 20BK/LG GROUND
6 - -
7 - -
8 - -
9 - -
10 - -
11 P699 20LG/DG MIRROR-POWER FOLDING/UNFOLDING
12 P110 20LG/WT FOLDING MIRROR RETURN

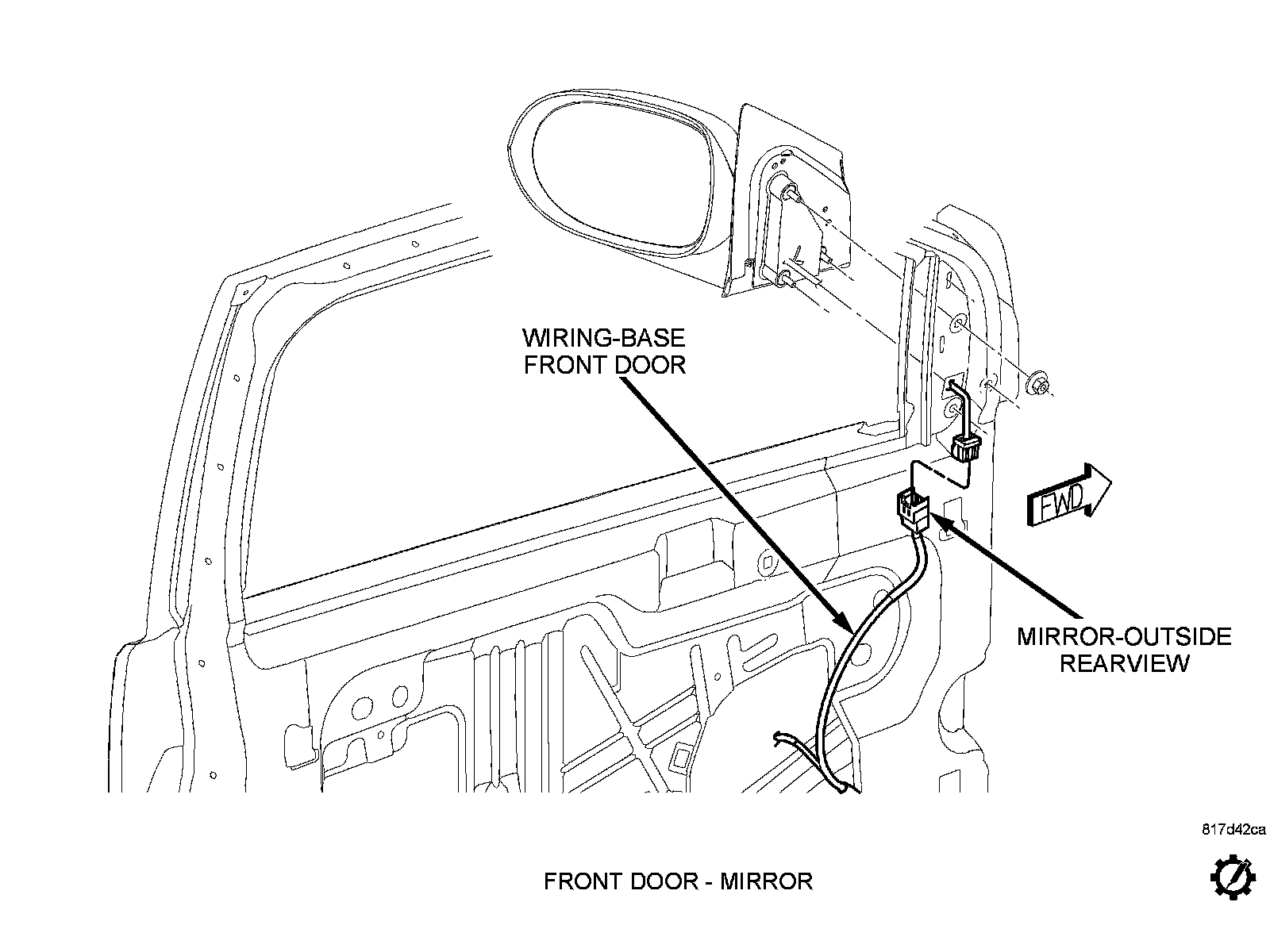

Component Location - 48




Component Location - 49
