A-Pillar Trim Panel-Removal







REMOVAL

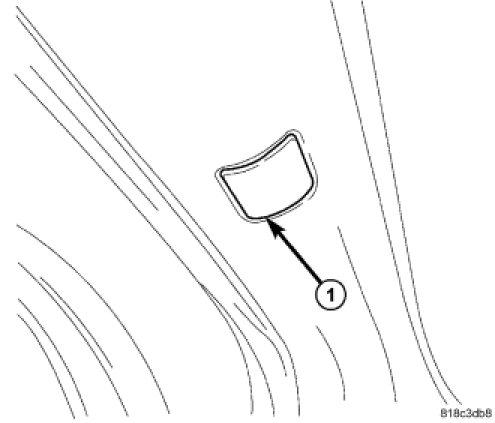

1. Using special tool C-4755, remove plug (1) from A-pillar.
2. Remove screw.
3. Remove A-pillar trim.
