Headliner - Installation

INSTALLATION

1. Before headliner installation, install courtesy lamp, cargo lamp, and Universal transmitter module to headliner. Universal Transmitter - Installation
2. With the help of an assistant, Install headliner through windshield opening.
3. Connect rear cargo lamp connector. Cargo Lamp - Installation
4. Install headliner push pins located at rear of headliner.
5. Connect front dome lamp connector.Dome Lamp - Installation
6. If equipped, connect home link module connector.Universal Transmitter - Installation
7. Connect front rear view mirror hardware.Rear View Mirror - Installation
8. Install rear view mirror.Rear View Mirror - Installation

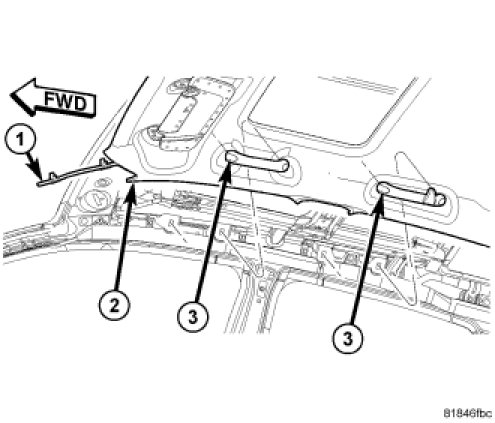

9. Install grab handles (3).
10. Connect rear washer hose.
11. Install sunvisor retainers. Rear View Mirror - Installation
12. Install sun visors.

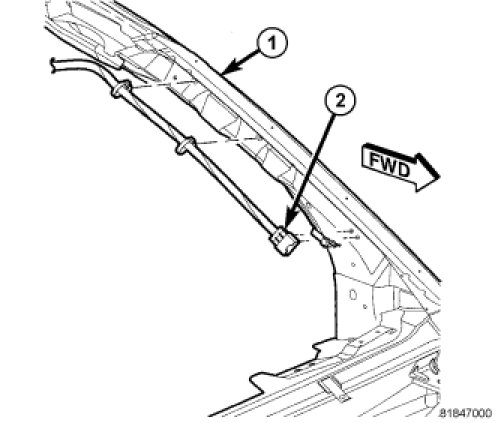

13. Connect A-pillar wire connector.
14. Install A-pillar trim.A-Pillar Trim Panel-Installation
15. Install scuff plate. Door Sill Scuff Plate - Installation
16. Install B-pillar lower trim.B-Pillar Trim
17. Install B-pillar upper trim.B-Pillar Trim
18. Install cargo load floor. Installation
19. Install rear quarter trim.Quarter Trim Panel - Installation
20. Install C-pillar trim. C-Pillar Trim Panel-Installation
21. Install rear seat striker bezel.
22. Install seat belt turning loops.
23. Install rear cargo scuff plate. Rear View Mirror - Installation
