Center Console - Removal

REMOVAL

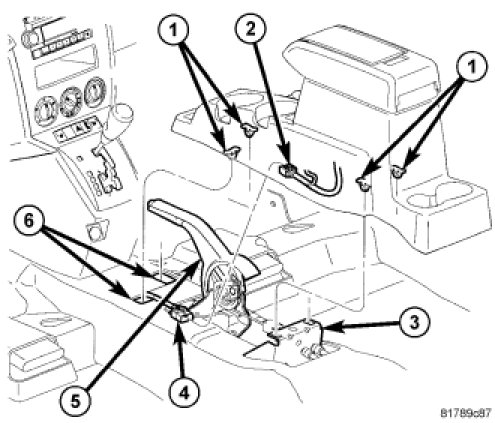

1. Pull back on parking brake (5) to the upright position.
2. Remove front screws (1) fastening center console to front floor bracket (6).
3. Open console door and remove two screws (1) fastening console to rear floor bracket (3).
4. Disconnect center console wire connector (2) to instrument panel connector.
5. Remove from vehicle.
