Carpet - Installation

INSTALLATION

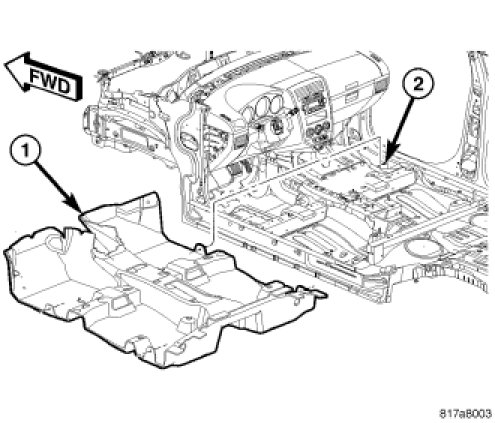

1. Install carpet into vehicle ensuring carpet (1) is aligned with tabs (2).
2. Install rear quarter panel trim.Quarter Trim Panel - Installation
3. Install liftgate scuff plate. Liftgate Sill Scuff Plate - Installation
4. Install cargo load floor. Installation
5. Install side cowl trim panel. Cowl Trim - Installation
6. Install B-pillar lower trim. B-Pillar Trim
7. Install door sill scuff plate. Door Sill Scuff Plate - Installation
8. Install center console.Center Console - Installation
9. Install center console shifter housing.Center Console - Installation
10. Install rear seat cushion.Seat Cushion - Installation
11. Install rear seat back.Seat Back - Installation )
12. Install front seats.
